BP-260A/E Automatic Alu-PVC / Alu-Alu Blister Packaging Machine
Oviewview

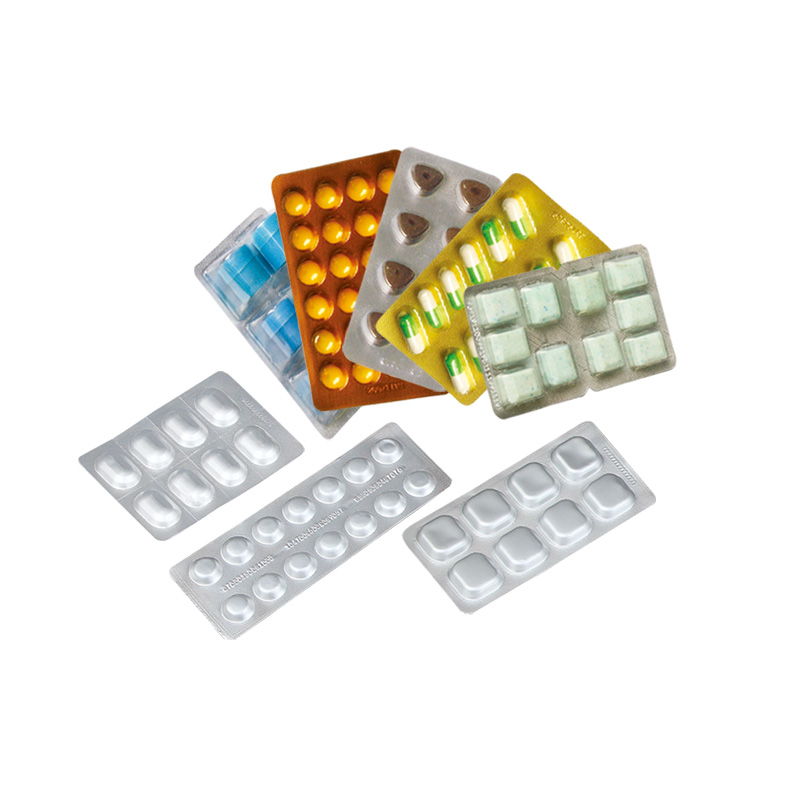

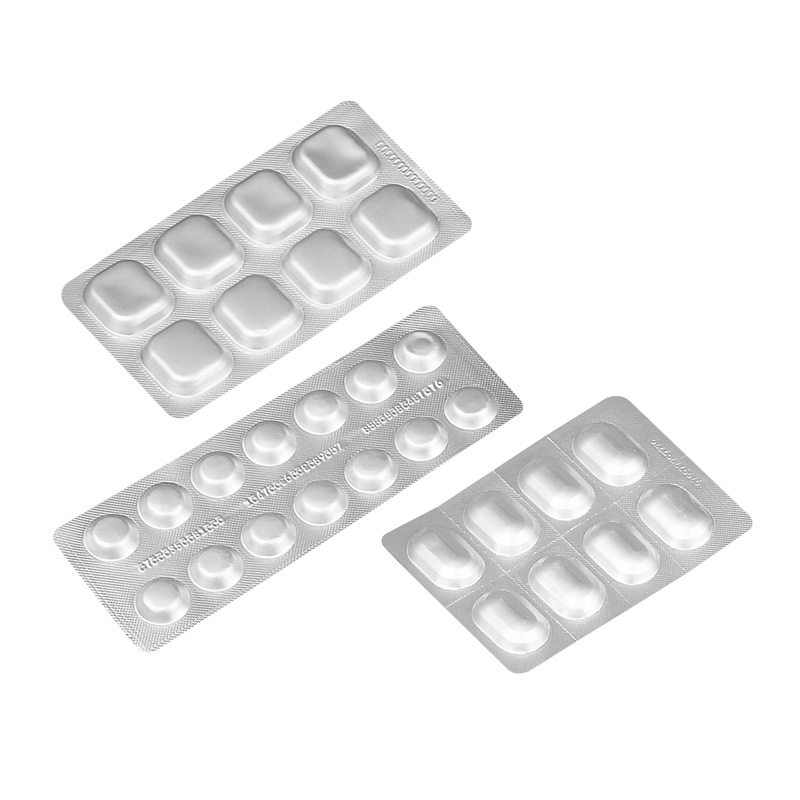

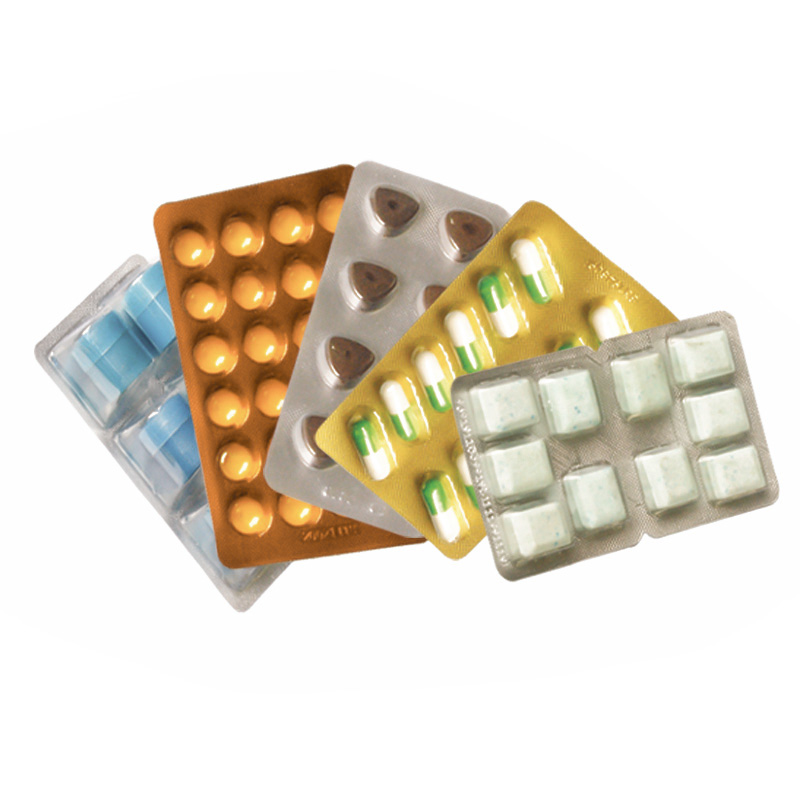

BP-260A/E automatic Alu-PVC / Alu-Alu blister packaging machine can form plastic or aluminum blisters, fill products, seal blisters to aluminum foil or dialyzing like tyvek paper. Blister packages are the ideal form of packaging for capsule, tablet, honey pill, candy, liquid, paste, injector as well as irregular shape Alu-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Features
- Quick changing molds with molds positioning device.
- The film feeding is controlled by servo motor.
- Adopts reliable and famous electrical equipment.
- All key parts are made of stainless steel and aluminum alloy material.
Technical Data
|
Model |
BP-260A |
BP-260E |
|
Blister type |
PVC-Alu |
Alu-Alu |
|
Packing capacity |
15-55 cycles/min |
15-40 cycles/min |
|
Stroke range |
10-120mm |
10-120mm |
|
Max. forming area |
250 x 100 x 13mm |
250 x 100 x 12mm |
|
Power voltage |
380V 50/60Hz 3phase |
|
|
Power consumption |
7 kW |
4 kW |
|
Air pressure |
0.5-0.8Mpa |
|
|
Air consumption |
≥0.36 CBM/min |
|
|
Forming material |
PVC: 270 x 0.15-0.4 x 300 |
Alu Foil: 270 x 0.14-0.15 x 300 |
|
Machine shell material |
Stainless steel |
|
|
Overall dimensions |
3550 x 900 x 1900mm |
|
|
Overall Weight |
2000kg |
|
