TPB-R30 Automatic Toilet Paper Roll Bundle Packaging Machine
Overview
TPB-R30 automatic toilet paper roll bundle packaging machine uses premade bags to pack toilet paper rolls and kitchen towel rolls. The max packing capacity is up to 22 packs per minute.
Features
- Adopts PLC and servo motor as the control and drive system.
- Toilet paper roll feeding, counting, picking up bags, opening bags, putting paper roll into bags and sealing are all automated.
- Monitor the presence of bags and paper rolls to prevent operation without bags or paper rolls.
- Adopts constant temperature heating for sealing, suitable for different packaging material.
- Double storage racks for premade bags.
- Reliable and stable bag taking unit adopts servo control system.
Technical Data
|
Model |
TPB-R30 |
|
Packing capacity |
5-22 packs/min |
|
Packing size |
Length 170-660 mm x Width 180-260 mm x Height 85-170 mm |
|
Packing arrangement |

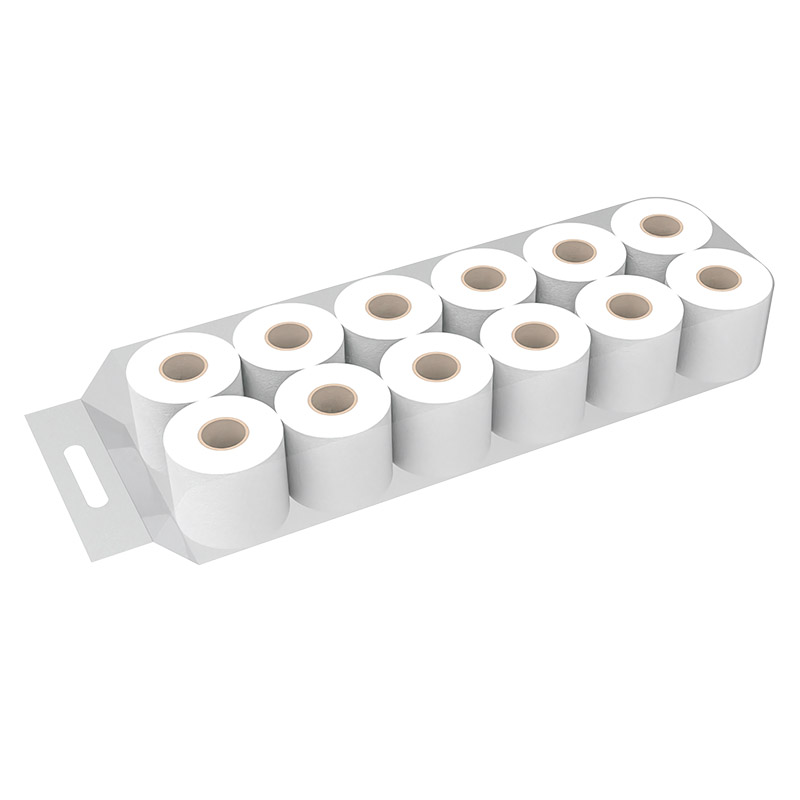

2 x 3, 2 x 4, 2 x 5, 2 x 6 |
|
Paper roll size |
Length 90-150 mm x diameter 90-130mm |
|
Packing material |
Premade bag |
|
Premade bag rack |
Double storage racks, 600 pcs |
|
Air pressure |
0.5MPa |
|
Air consumption |
350 L/min |
|
Power voltage |
380V 50/60Hz 3phase |
|
Power consumption |
20 kW |
|
Machine dimension |
5200 (L) x 1980 (W) x 2350 (H) mm |
|
Machine weight |
3400 kg |
