Name: BA-350 Turntable Blister Card Packing Machine - WIMACH
Brand: WIMACH
SKU: BA-350
Price: 1 USD
Availability: InStock

BA-350 Automatic Turntable Blister Card Packing Machine

With rotary sealing and filling station, a flexible and cost-efficient machine can form blisters, fill (optional), seal blisters to ready-made cards automatically. It is the best choice for packaging of small to medium batches. Face seal blisters and trapped blister packages can be made on this machine.

Overview

BA-350 automatic turntable blister card packing machine with rotary sealing and filling station is a flexible and cost-efficient machine can form blisters, fill (optional), seal blisters to ready-made cards automatically. It is the best choice for packaging of small to medium batches. The machine can make blister types of face seal blisters and trapped blister packages.
The perfect combination of complete product visibility on one side and printed information on the other side of the packaging helps consumers and users find what they are looking for quickly and easily.

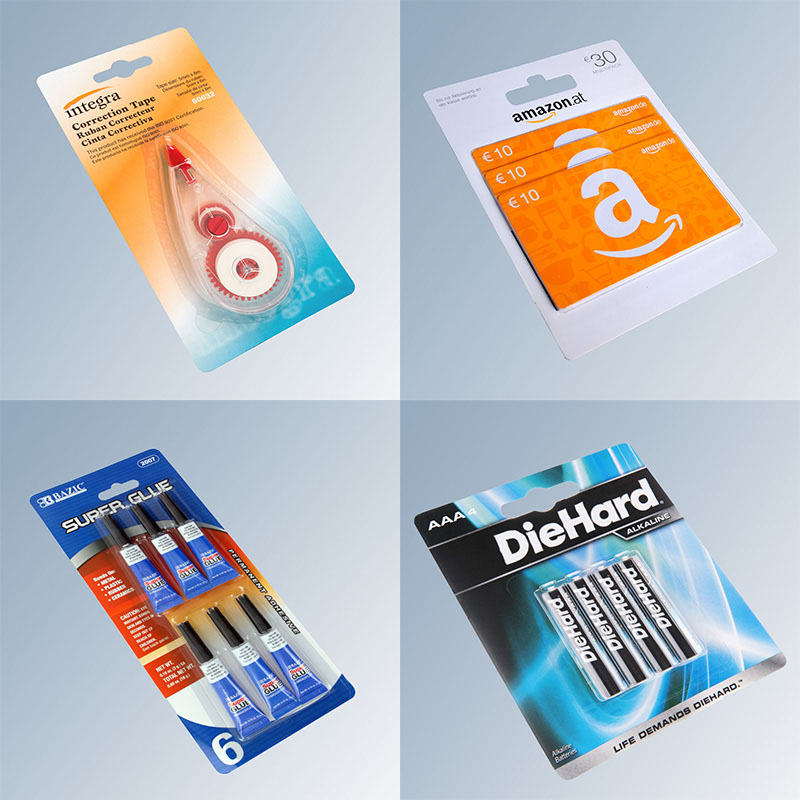

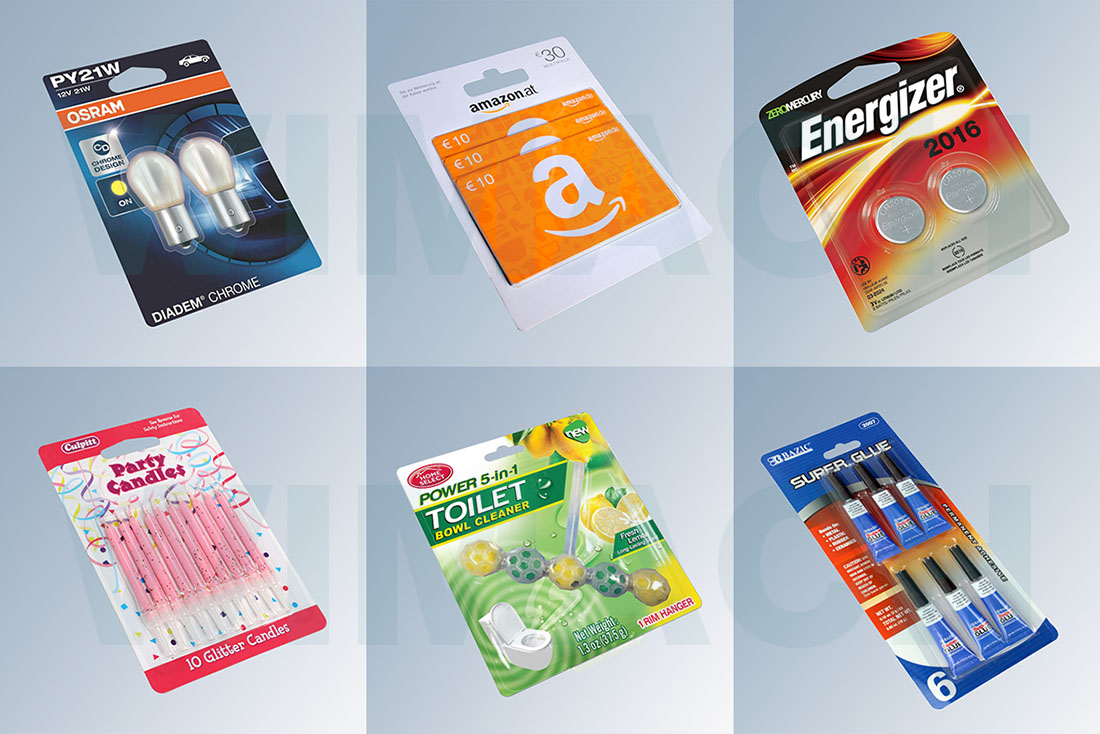

Application

Cosmetics and beauty products: mascara, lipstick, lip balm, nail polish, make-up, …
Household items: knife, flashlight, lighter, super glue, air freshener, bottle opener, scissors, toy, light bulb, candles, …
Office supplies: pen, sharpener, correction tape and fluid, USB flash drive, stapler, adhesive tape, printer cartridge, ballpoint pen, eraser, binder clips, …
Personal care products: razor, razor blade, cream, toothbrush, manicure sets, …
Batteries: button cell battery, AAA type battery, AA type battery, C type battery, …
Automobile parts: brake shoe, brake pad, spark plug, windshield wiper, …

Features

Flexible and cost efficient packaging of small to medium batches.
Driven by servo motors to ensure the machine runs accurately.
Reliable electrical equipment like Omron PLC, Omron touch screen, Omron frequency converter, Panasonic servo drive ensure the stability.
An alarm sounds when the forming material or cards run out.
Stainless steel machine shell.
Convenient to transport the whole machine due to detachable machine design.

Technical Data

Model	BA-350
Max. size of card	350 x 220mm
Max. forming area	330 x 180mm
Max. forming depth	40mm
Packing capacity	12-20 cycles/min
Power voltage	380V 50/60Hz 3phase
Power consumption	11 kW
Air pressure	0.5-0.8 Mpa
Air consumption	≥0.5 CBM/min
Forming material	PVC, PET, PS, thickness 0.15-0.5mm
Forming material roll size	width 350mm x diameter 450mm
Machine shell material	Stainless steel

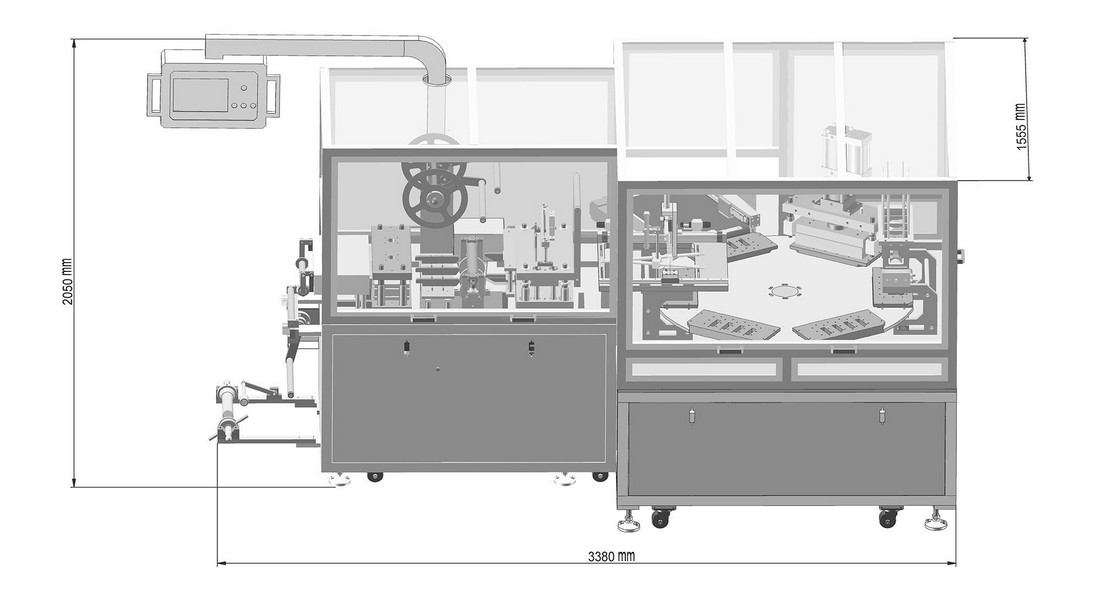

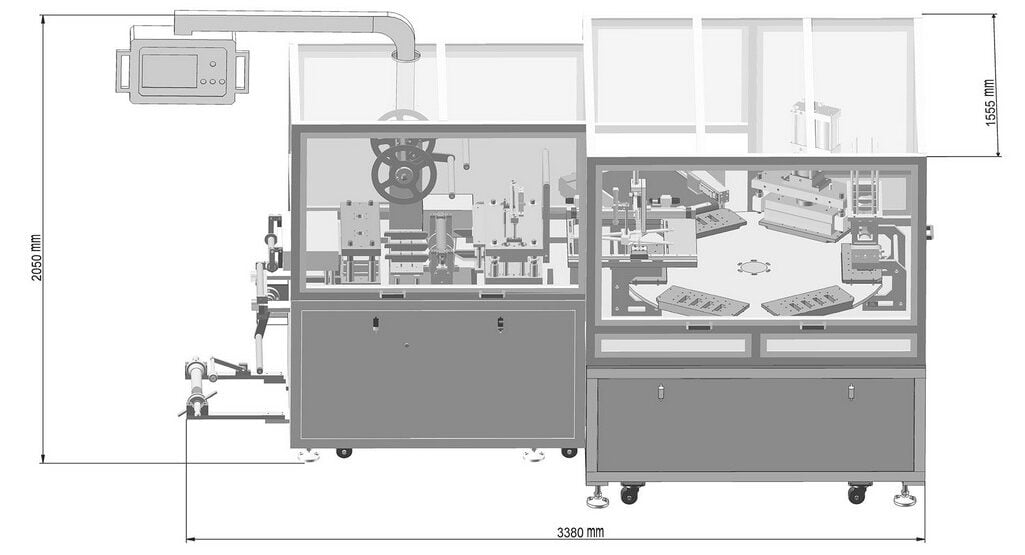

Overall dimensions	L3380 x W1555 x H2050mm
Overall Weight	2000kg
