TP-180 Soft Tissue Wrapping Machine

TP-180 Automatic Soft Tissue Wrapping Machine

Uses plastic film to pack facial tissues and paper napkins, with a maximum packing speed of 180 packs per minute.

Overview

TP-180 automatic soft tissue wrapping machine is designed to wrap facial tissue and paper napkin. This machine can automatically complete tissue feeding, film coding, film cutting, film perforating, edge sealing and heat sealing of the package sides.

Features

  • Driven by servo motors to ensure the machine runs accurately.
  • Adopts a four-station high-speed servo-driven turntable with easy adjustment.
  • Film cutting and perforating use spring rotary blades driven by servo motors, idle without material to extend blade life.
  • Adopts electronic hand wheel instead of mechanical hand wheel, enabling convenient and precise control.
  • Adopt high-precision photoelectric tracking and monitoring system.
  • No film feeding without tissue, film feeds automatically with tissue present.
  • Equipped with an automatic film tension adjustment device.
  • Equipped with alarm function for over-length and under-length errors of tissue.
  • Optional motorized ribbon coder or thermal transfer coder.
  • Optional shaped perforation device.
  • Reliable electrical components with famous international brands.
  • Wide packing range, change molds quickly.

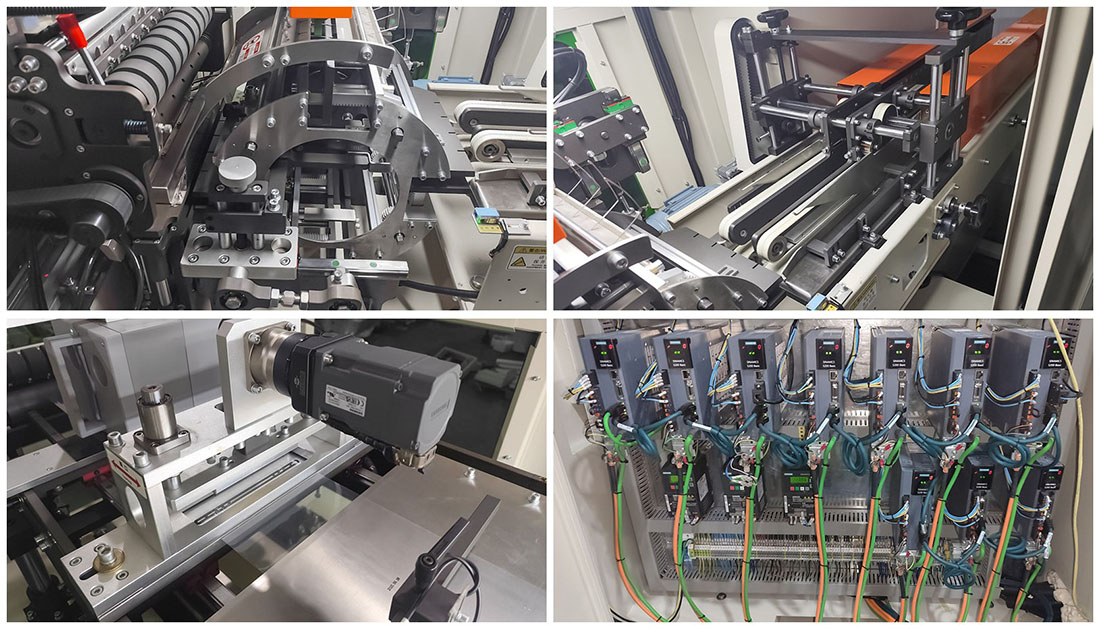

soft packing machine details

Technical Data

Model

TP-180

Maximum Packing capacity

180 packs/min

Package dimension

90-200 (L) x 85-105 (W) x 25-90 (H) mm

Power voltage

380V 50/60Hz 3phase

Power consumption

12 kW

Air pressure

0.5-0.8 Mpa

Film material

CPP, PE, composite film

Film roll dimension

340 (W) x 450 (D)mm, thickness 0.035-0.05mm

Overall dimensions

3585 (L) x 6260 (W) x 1800 (H) mm

Overall Weight

2900kg

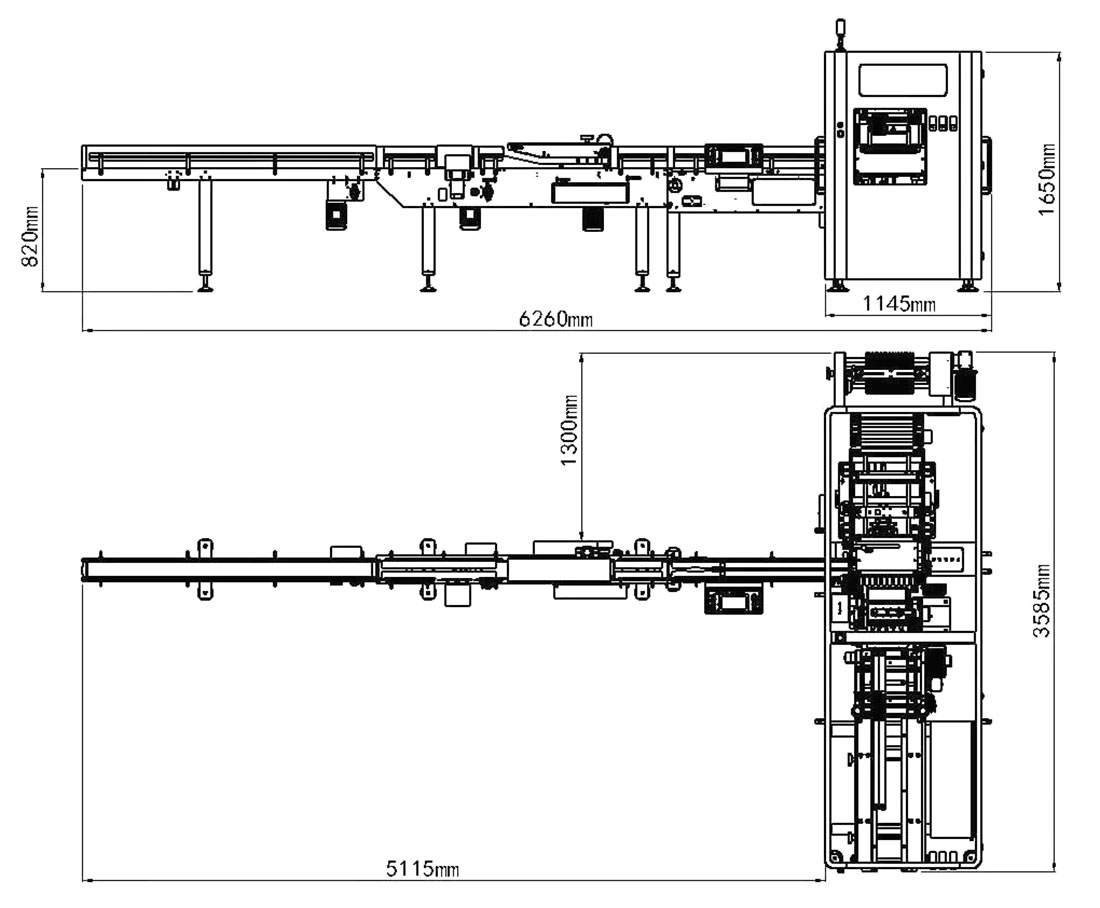

Layout

soft wrapping machine layout
