BA-350H Turntable HF Sealing Blister Packing Machine

BA-350H Automatic Turntable Blister Packing Machine with High Frequency Sealing

Adopts high frequency sealing system which can make a better and stronger sealing especially for double blister package. Form blisters, fill (optional), place cards or back blisters, seal blisters to ready-made cards or blisters automatically.

Overview

BA-350H automatic turntable blister packing machine with high frequency sealing can form blisters, fill (optional), seal blisters to ready-made cards or blisters automatically. This machine adopts high frequency sealing system which can make a better and stronger sealing. Face seal blister type and double blister type can be made on this machihne.
The perfect combination of complete product visibility on one side and printed information on the other side of the packaging helps consumers and users find what they are looking for quickly and easily.

Application

  • Cosmetics and beauty products: mascara, lipstick, lip balm, nail polish, make-up, …
  • Household items: knife, flashlight, lighter, super glue, air freshener, bottle opener, scissors, toy, light bulb, candles, …
  • Office supplies: pen, sharpener, correction tape and fluid, USB flash drive, stapler, adhesive tape, printer cartridge, ballpoint pen, eraser, binder clips, …
  • Personal care products: razor, razor blade, cream, toothbrush, manicure sets, …
  • Batteries: button cell battery, AAA type battery, AA type battery, C type battery, …
  • Automobile parts: brake shoe, brake pad, spark plug, windshield wiper, …

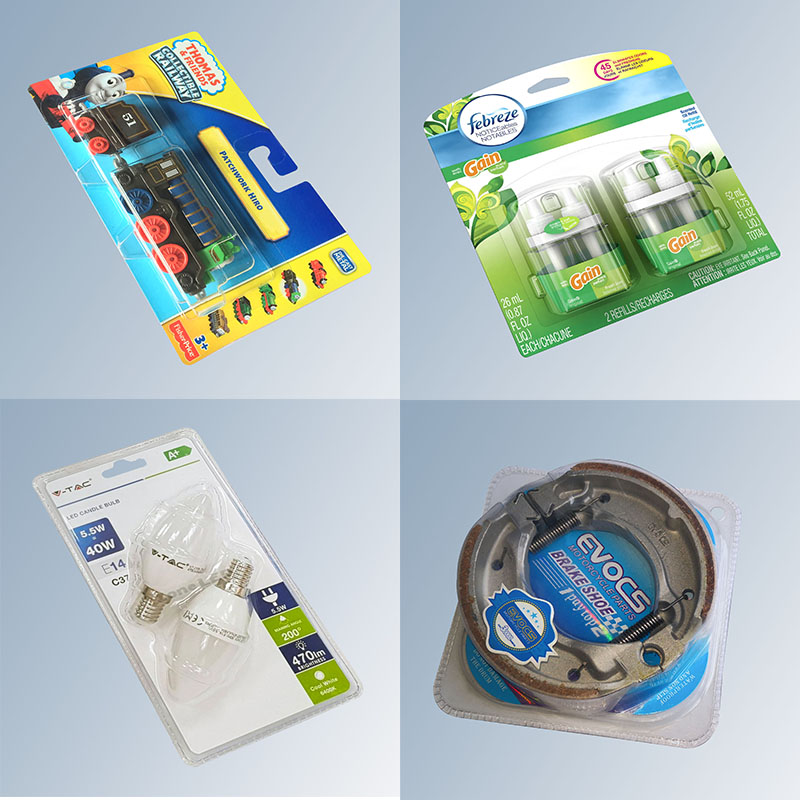

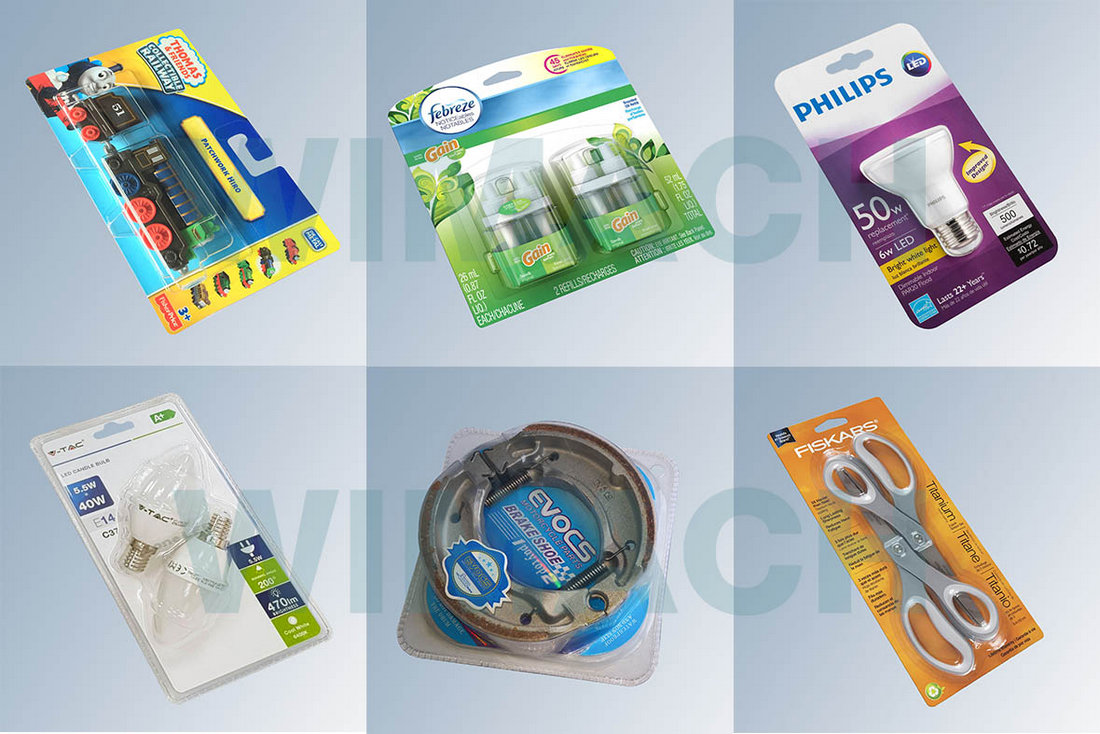

A350H high frequency sealing samples

Features

  • Adopts high frequency sealing to make a stronger sealed flange.
  • Flexible and cost efficient packaging of small to medium batches.
  • Driven by servo motors to ensure the machine runs accurately.
  • Reliable electrical equipment from famous international supplier like Omron, Mitsubishi, Delta, Panasonic, Schneider to ensure the stability.
  • Optional extra blister forming station for double blister packages.
  • Stainless steel machine shell.

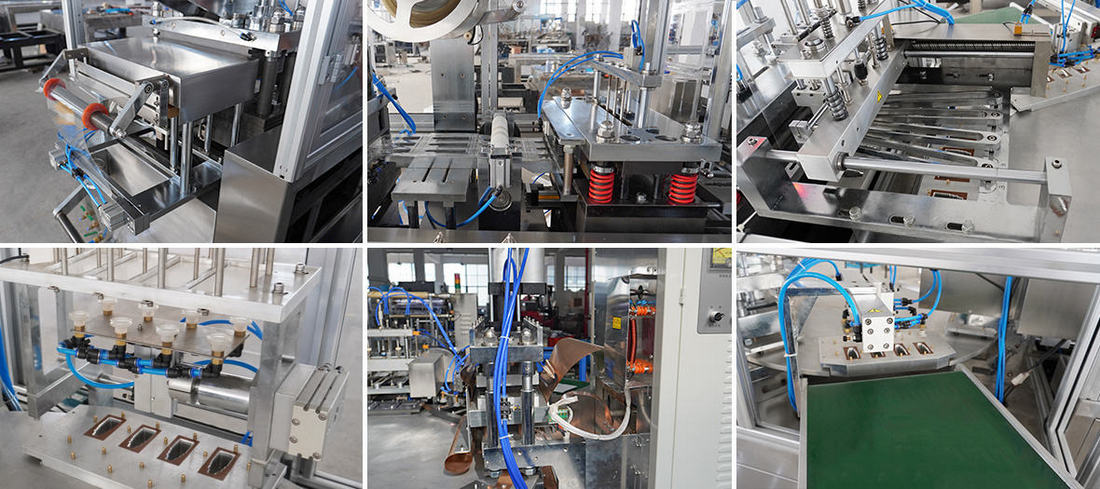

A350H high frequency sealing deails

Technical Data

Model

BA-350H

Max. size of card

350 x 220mm

Max. forming area

330 x 180mm

Max. forming depth

40mm

Packing capacity

5-20 cycles/min

Power voltage

380V 50/60Hz 3phase

Power consumption

20 kW

Air pressure

0.5-0.8 Mpa

Air consumption

≥0.5 CBM/min

Forming material

PVC, PET, PS, thickness 0.15-0.5mm

Forming material roll size

width 350mm x diameter 450mm

Machine shell material

Stainless steel

Overall dimensions

L3700 x W3100x H1950mm

Overall Weight

2300kg

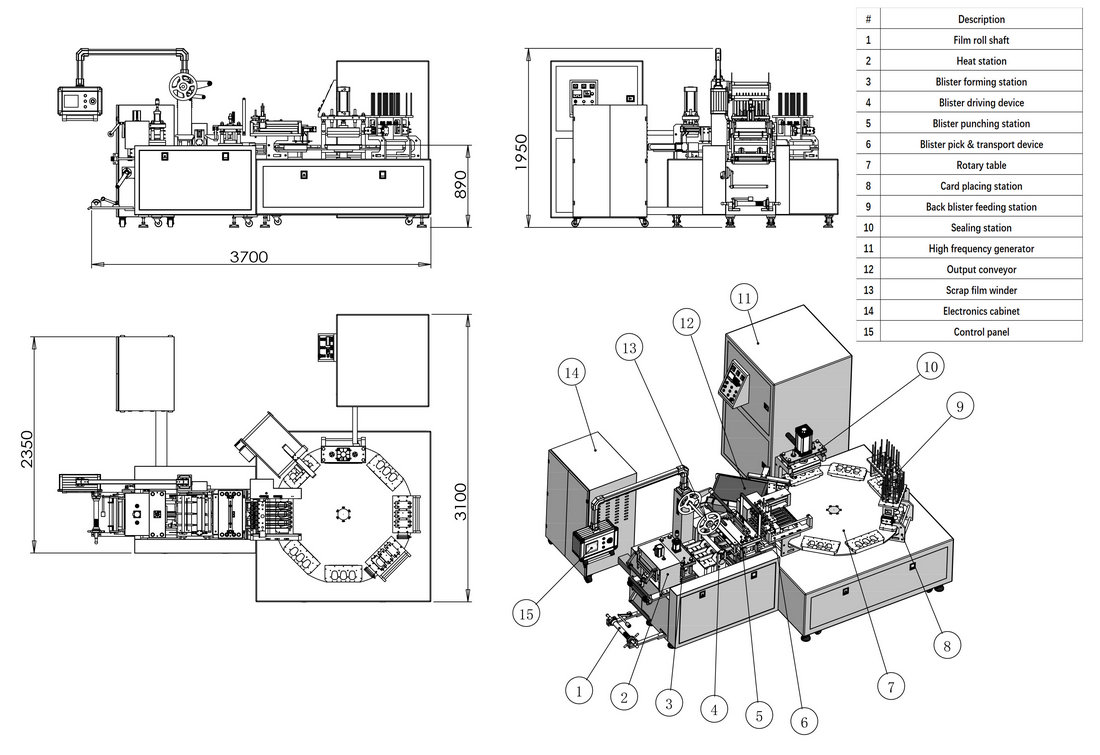

Layout

BA350H layout
