TW-160 Toilet Paper Roll Wrapping Machine

TW-160 Automatic Toilet Paper Roll Wrapping Machine

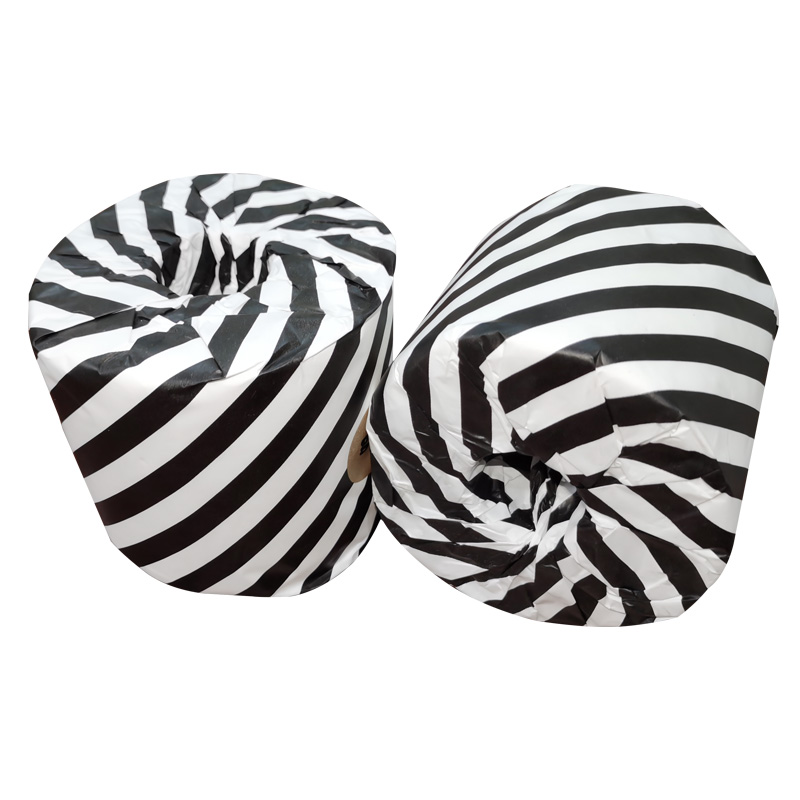

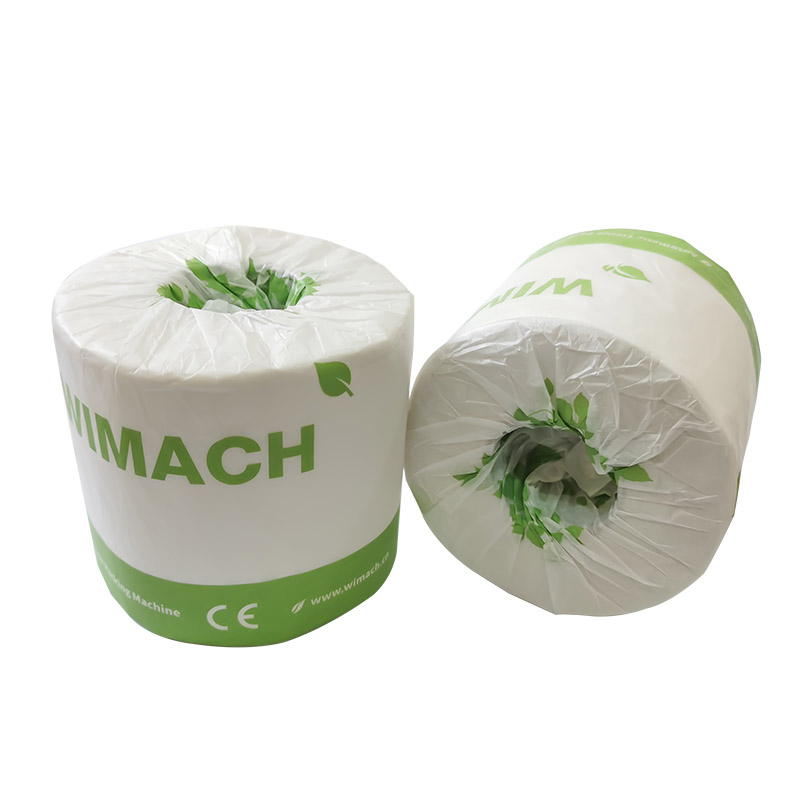

Wraps single toilet paper rolls and bathroom tissues with eco-friendly wrapping paper instead of plastic film.
The stable packaging speed is 120 rolls per minute.

Overview

TW-160 automatic toilet paper wrapping machine is designed to use wrapping paper to wrap toilet paper rolls and bathroom tissue paper rolls. The machine can feed toilet paper rolls, cut wrapping paper, fold wrapping paper, tuck wrapping paper and output toilet paper rolls automatically.
This machine adopts wrapping paper to individually package single toilet paper rolls, replacing traditional plastic film packaging. It realizes plastic-free production, features eco-friendly and sustainable materials, reduces plastic waste, and caters to the growing market demand for green and environmentally friendly daily necessities. Meanwhile, the paper wrapping delivers a natural, high-end appearance with good wrapping tightness and product protection.

Features

  • Compact structure and easy to operate.
  • Controlled by 13 servo drives and a motion controller.
  • Tissue rolls wrapped in wrapping paper, eco-friendly and stylish.
  • Only feed the wrapping paper when tissue rolls are in position.
  • Robust machine frame and reliable electrical components.
  • Optional upending device.

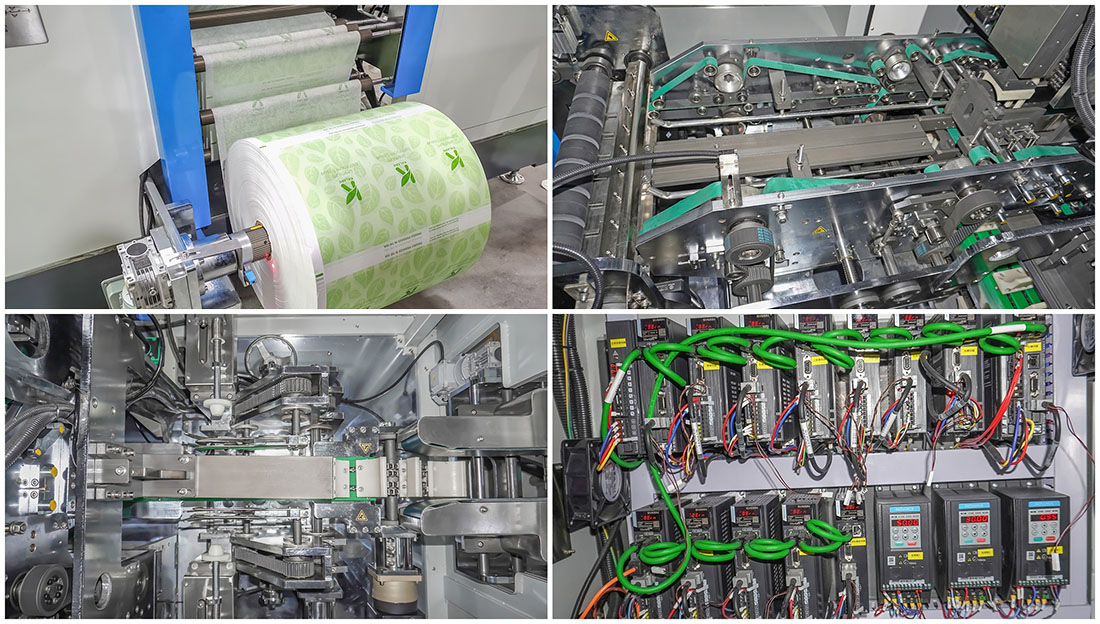

TW160 details 1100

Technical Data

Model

TW-160

Packing capacity

60-120 rolls/min

Tissue roll dimension

90-130 (L) x 90-130 (D) mm

Wrapping paper roll dimension

480 (L) x 500 (D) mm

Wrapping paper grammage

17 – 37 gsm

Power voltage

380V 50/60Hz 3phase

Power consumption

12 kW

Air pressure

0.5-0.8 Mpa

Air consumption

120-160 L/min

Overall dimensions

4350 (L) x 2550 (W) x 1940 (H) mm

Overall Weight

3500kg

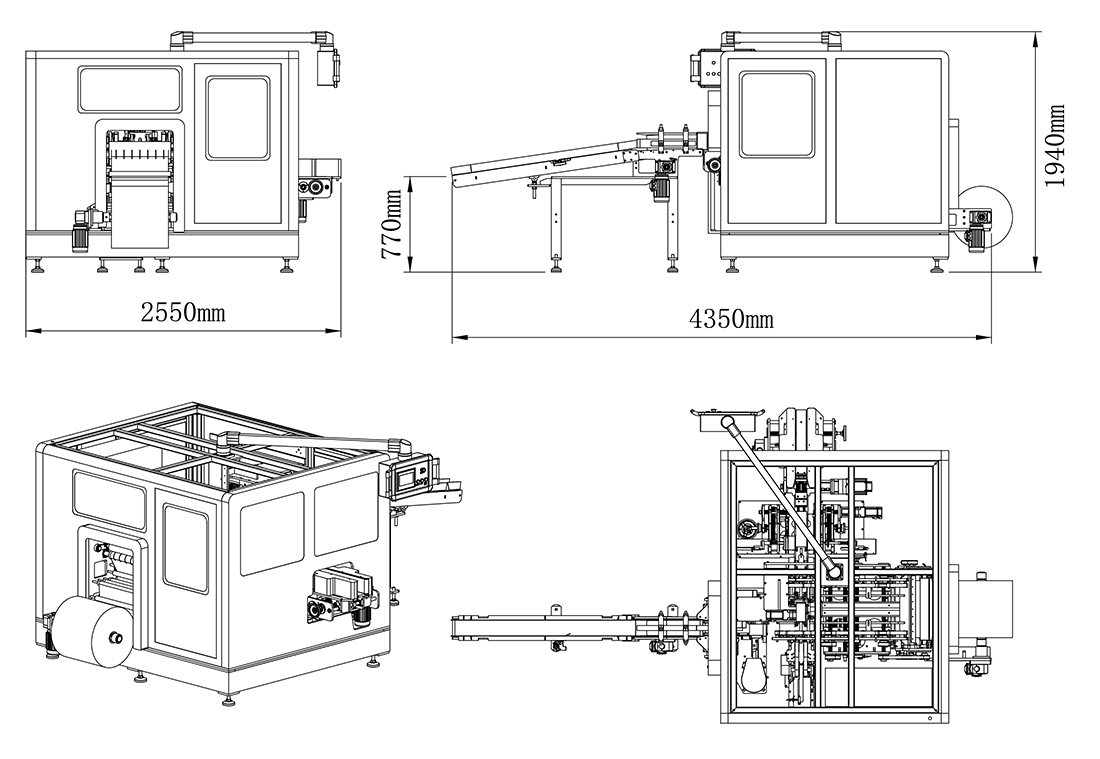

Layout

layout of TW160 toilet paper wrapping machine
