Automatic Case Packer
This case packer is designed for automatic carton packing in the rear packaging line. It can automatically realize product sorting, case feeding, packing and sealing.
Overview
There are two types of case packers. Both case packing machines feature a compact, integrated design and can automatically sort products, feed and erect cartons, load products into cartons and seal cartons.

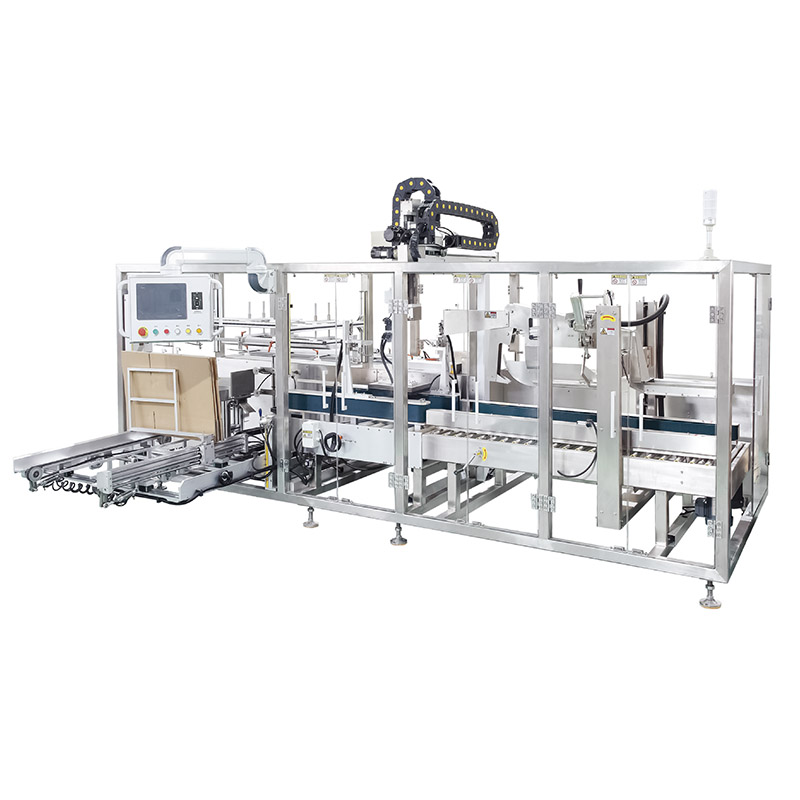

One is the pick-and-place case packer, which adopts a servo-driven pick-and-place mechanism to gently and accurately place products into cartons. It features flexible operation, a wide application range and low product damage.

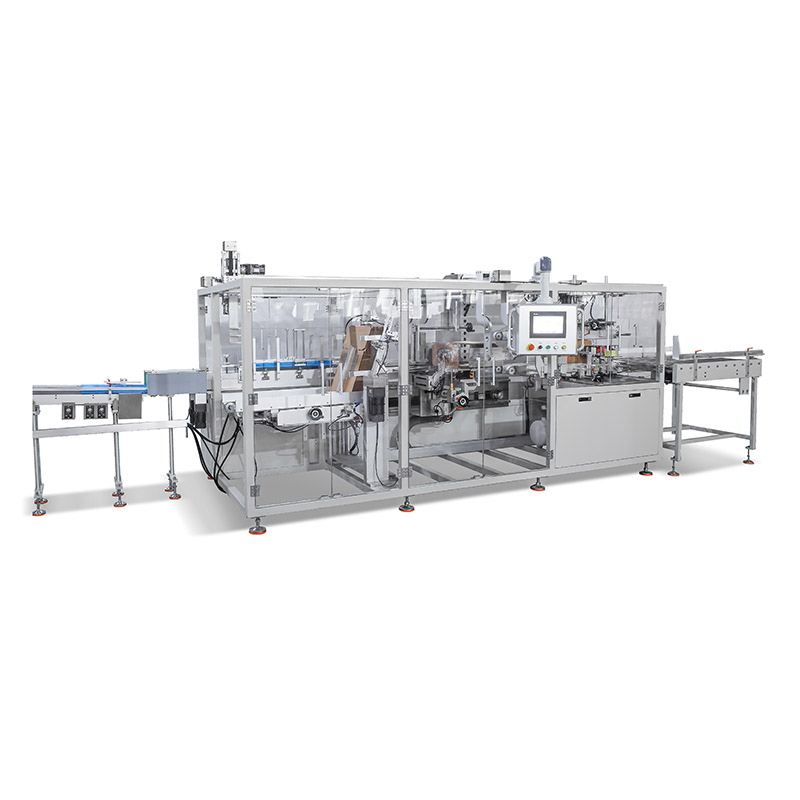

The other is the side push case packer, which pushes products laterally into cartons at a high speed with stable performance. It is ideal for high-volume production lines handling regularly packaged products, featuring a compact structure and easy adjustment.
Features
Technical Data
|
Type |
Pick-and-Place Case Packer |
Side Push Case Packer |
|
Packing capacity |
1-8 cartons/min |
1-16 cartons/min |
|
Carton dimension |
300-600 (L) x 200-400 (W) x 150-400 (H) mm |
240-500 (L) x 200-400 (W) x 180-400 (H) mm |
|
Power voltage |
380V 50/60Hz 3 phase |
380V 50/60Hz 3 phase |
|
Power consumption |
7.5 kW |
4.5 kW |
|
Air pressure |
0.5-0.8 Mpa |
0.5-0.8 Mpa |
|
Air consumption |
450 L/min |
350 L/min |
|
Overall dimensions |
4200 (L) x 2600 (W) x 2200 (H)mm |
4200 (L) x 2300 (W) x 1900 (H)mm |
|
Overall Weight |
1600 kg |
1500 kg |
Video
Watch the video to learn more about the machine
