TB-R30 Tissue Roll Bundle Bagging Machine

TB-R30 Automatic Tissue Roll Bundle Bagging Machine

Fill toilet rolls or kitchen rolls into bags and seal the bags, with a maximum packing speed of 25 packs per minute.

Overview

TB-R30 is an automatic bundle bagging machine for toilet rolls and kitchen rolls. It is designed to feed and arrange tissue rolls, fill them into bags and seal the bags automatically. This machine can be connected to a tissue roll cutting machine at the front and a secondary packaging machine at the rear.

Features

  • Driven by servo motors to ensure the machine runs accurately.
  • The tissue roll feeding and sorting device is servo-driven, with automatic lane distribution, storage and discharge.
  • Two bag magazines with automatic switching by air cylinders.
  • Bag opening, sleeving, supporting, pushing and bag sealing are fully automated,
  • Two pushers with air suction and corner folding functions.
  • Defective bags from failed opening can be automatically and accurately rejected.
  • Reliable electrical components with famous international brands.

Technical Data

Model

TB-R30

Maximum Packing capacity

25 packs/min

Package dimension

180-600 (L) x 150-400 (W) x 100-250 (H) mm

Pre-made bag magazine

2 bag magazines

Power voltage

380V 50/60Hz 3phase

Power consumption

13 kW

Air pressure

0.5-0.8 Mpa

Air consumption

450 L/min

Overall dimensions

8000 (L) x 2000 (W) x 2000 (H) mm

Overall Weight

2200kg

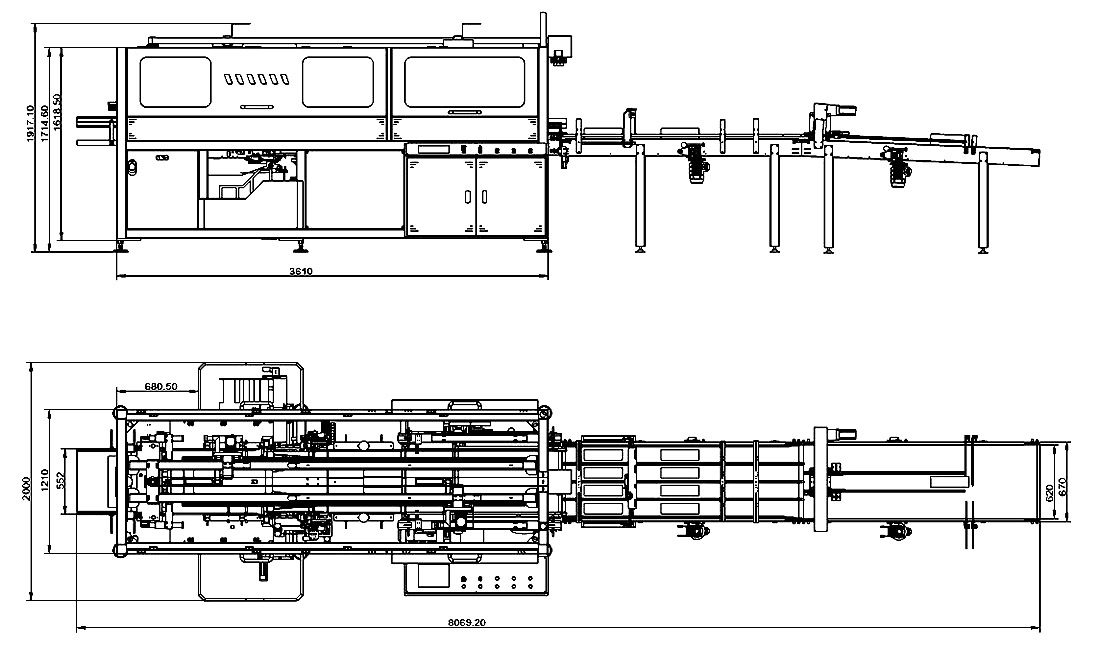

Layout

TBR30 layout
