TC-300 High-Speed Tissue Cartoning Machine

TC-300 Automatic High-Speed Tissue Box Packing Machine

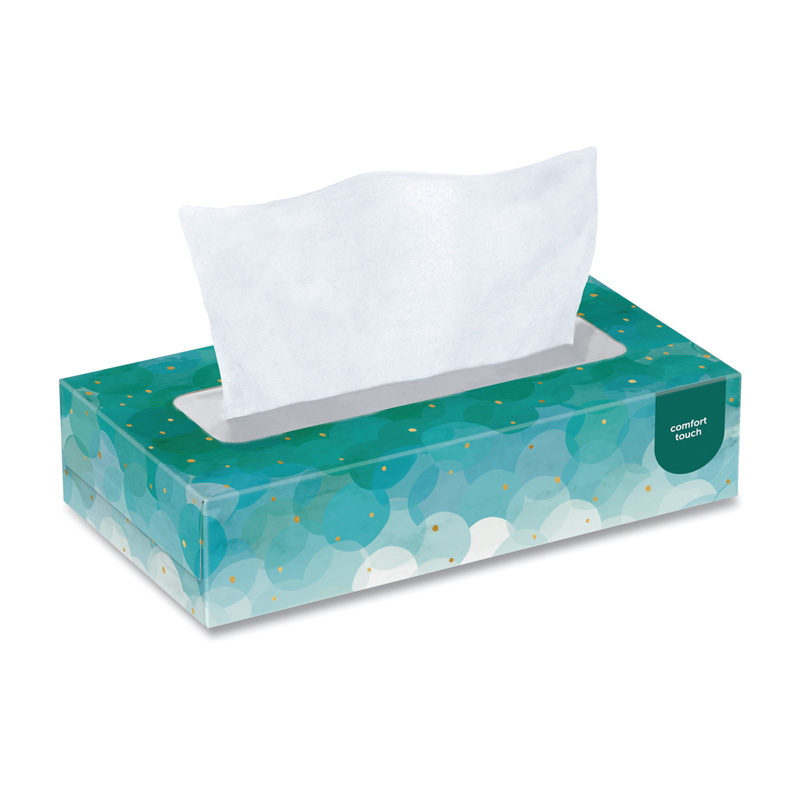

Pack facial tissues and paper napkins into cartons, with a maximum speed of 180 cartons per minute.

Overview

TC-300 automatic high speed tissue box packing machine is designed to feed facial tissues and paper napkins into boxes and seal boxes. The maximum packing speed is 180 boxes per minute. The machine includes an adhesive dispenser and controlled by reliable electrical components. It is a flexible machine which has wide packing range.

Features

  • Feed tissues, erect boxes, put tissue into boxes, mark batch number, dispense hot melt adhesive, seal boxes and output packaged boxes automatically.
  • Adopts servo motors to feed tissue paper and put tissue into boxes.
  • Adopts high-capacity and faster cartons feeder.
  • Only feed the cartons when the tissues are in position.
  • Adopts Nordson hot melt adhesive dispenser.
  • Reliable electrical components with famous international brands.
  • Wide packing range, adjust packing size quickly.
  • The machine stops when it is overload.

Technical Data

Model

TC-300

Maximum packing capacity

180 boxes/min

Carton board grammage

300-400 gsm

Carton dimension

100-240 (L) x 100-120 (W) x 20-90 (H) mm

Power voltage

380V 50/60Hz 3phase

Power consumption

8 kW

Air pressure

0.5-0.8 Mpa

Air consumption

120-160 L/min

Overall dimensions

5000 (L) x 1740 (W) x 1800 (H) mm

Overall Weight

3000kg

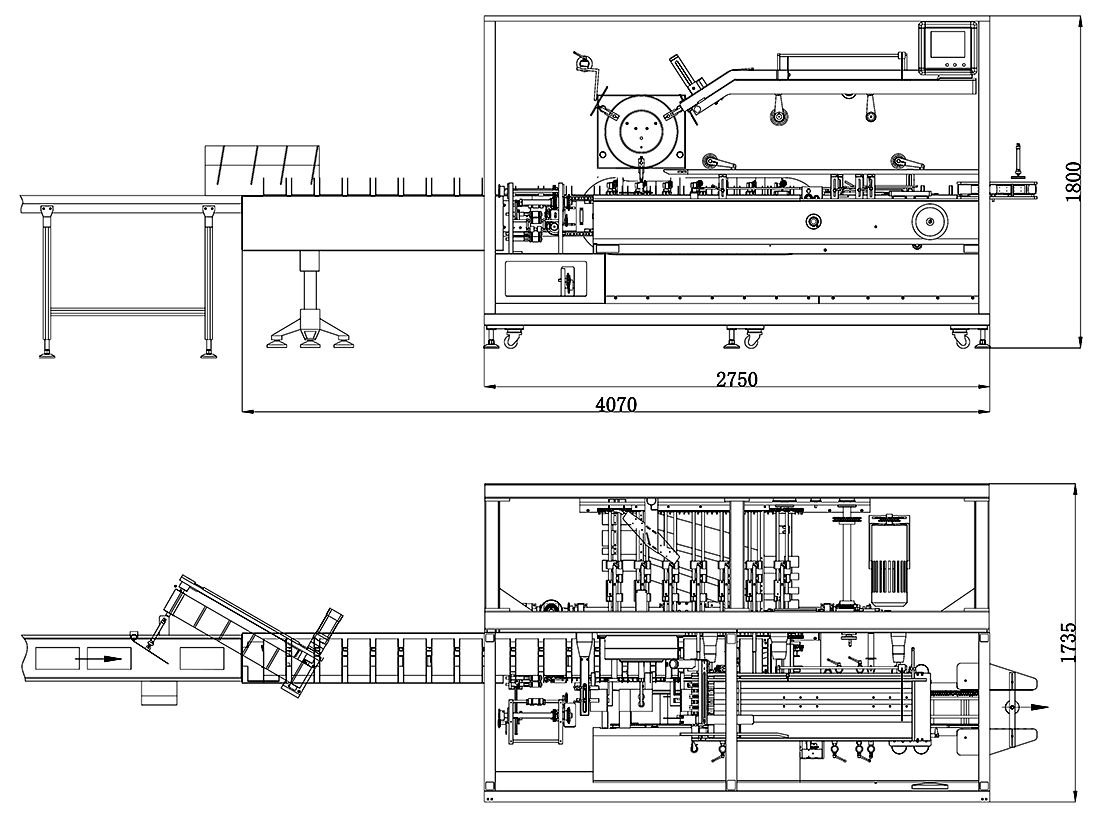

Layout

TC300 layout
