TC-100 Automatic Tissue Box Packing Machine

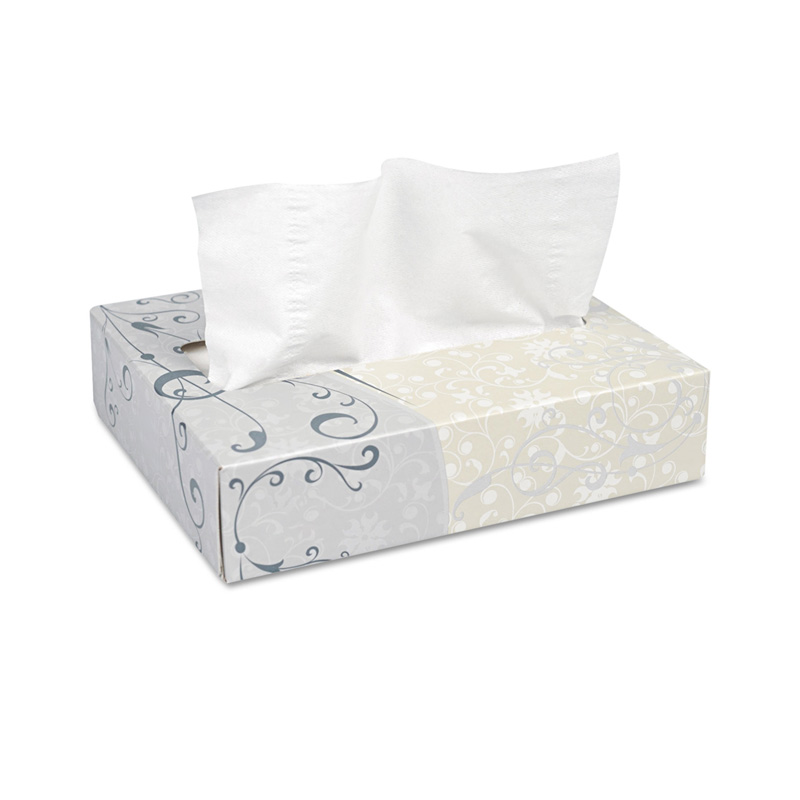

Pack facial tissues and paper napkins into boxes. The stable packaging speed is 100 boxes per minute.

Overview

TC-100 automatic tissue box packing machine is designed to feed facial tissues and paper napkins into boxes and seal boxes. The steady packing speed is 100 boxes per minute. The machine includes a Nordson adhesive dispenser and controlled by reliable electrical components. It is a flexible machine which has wide packing range.

Features

Feed tissues, erect boxes, put tissue into boxes, mark batch number, dispense hot melt adhesive, seal boxes and output packaged boxes automatically.
Adopts servo motors to feed tissue paper and put tissue into boxes.
Adopts high-capacity and faster cartons feeder.
Only feed the cartons when the tissues are in position.
Adopts Nordson hot melt adhesive dispenser.
Reliable electrical components with famous international brands.
Wide packing range, adjust packing size quickly.
The machine stops when it is overload.
Equip safety guide cover.

Technical Data

Model	TC-100
Packing capacity	30-100 boxes/min
Carton board grammage	300-400 gsm
Carton dimension	100-240 (L) x 100-120 (W) x 20-90 (H) mm
Power voltage	380V 50/60Hz 3phase
Power consumption	6.2 kW
Air pressure	0.5-0.8 Mpa
Air consumption	120-160 L/min

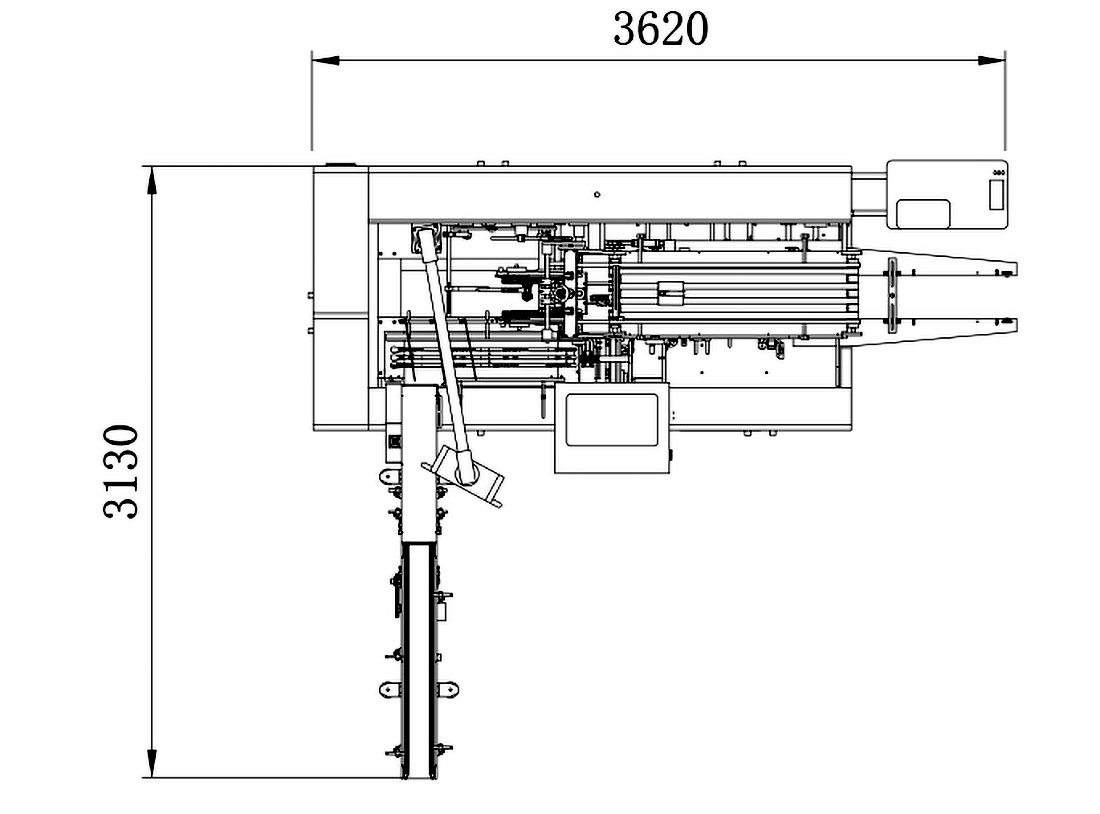

Overall dimensions	3620 (L) x 3130 (W) x 1800 (H) mm
Overall Weight	2200kg
