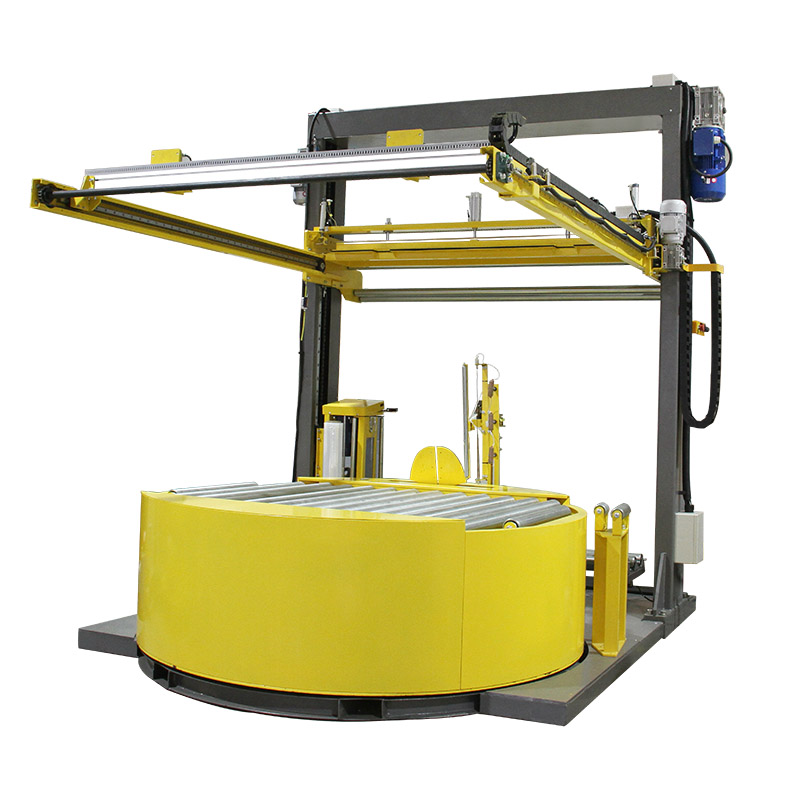

Automatic Stretch Wrapper

Automatic Stretch Film Wrapping Machine

The inline stretch film wrapper for pallets is one of the core equipment in the rear packaging line. It can seamlessly integrate with case packers, palletizers, conveyors and other equipment to realize automatic continuous operation.

Overview

The stretch wrapping machine adopts an inline design, it does not require manual material transfer. It can automatically receive cartons, pallets or grouped products conveyed by the assembly line, and wrap the materials with stretch film to achieve dust-proof, water-proof and anti-stacking effects. At the same time, it enhances the overall stability of materials, facilitating warehouse stacking and logistics transportation. The machine features adjustable wrapping layers and speed, suitable for materials of different specifications and weights.

Features

  • PLC control, adjustable wrapping layers and cycles.
  • Photoelectric automatic height detection, automatic film feeding and cutting
  • Turntable with chain drive, soft start/stop, automatic reset, variable frequency speed control.
  • Pre-stretch up to 200%, dual-chain lifting, enclosed and self-lubricating design
  • Separate variable speed control for film carriage lifting/lowering and film feeding.
  • Adjustable top and bottom wrapping layers.

Technical Data

Turntable diameter

2000 mm

Turntable height

500 mm

Turntable speed

0-15 rounds/min

Top covering film width

1200 -1600 mm

Maximum packing height

1800 mm

Maximum packing weight

1500 kg

Wrapping speed

10-25 pallets/hour

Film roll dimension

500 (W) x 250 (D) mm

Power voltage

380V 50/60Hz 3 phase

Power consumption

2.85 kW

Air pressure

0.5-0.8 Mpa

Overall dimensions

3200(L) x 2300 (W) x 3200 (H)mm

Overall Weight

1600 kg
