TB-F60 Bottom Dispensing Tissue Bagging Machine

TB-F60 Automatic Bottom Dispensing Tissue Bagging Machine

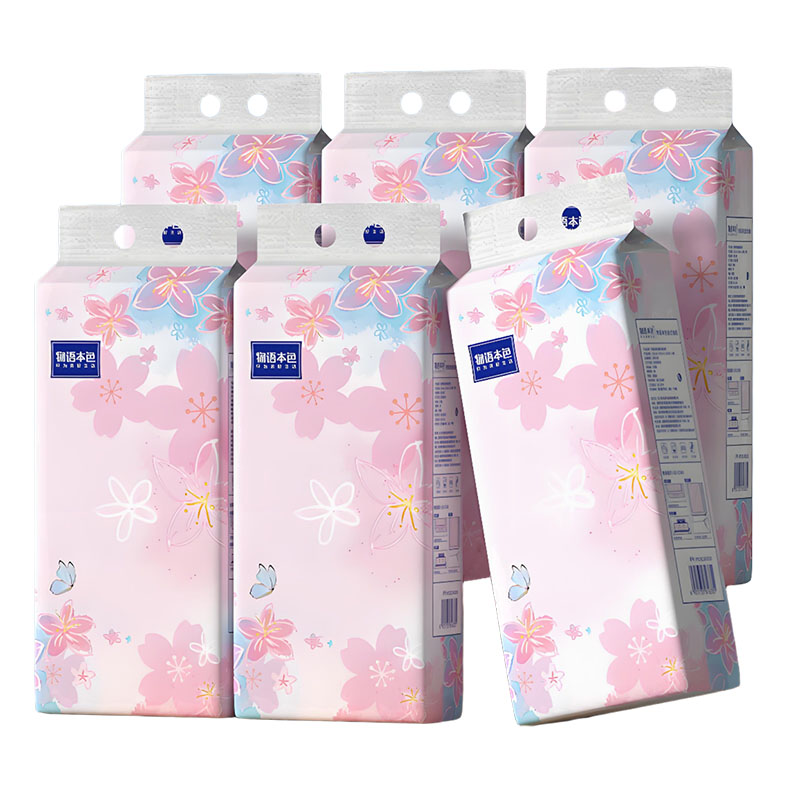

Fill soft facial tissues into bags and seal the bags, with a maximum packing speed of 60 packs per minute.

Overview

TB-F60 automatic bottom pull tissue bagging machine is designed to feed soft tissue, fill them into bags and seal the bags automatically. This machine can be connected to a tissue cutting machine at the front and a secondary packaging machine at the rear.

Features

  • Driven by servo motors to ensure the machine runs accurately.
  • Core mechanisms are driven by independent servo motors and cylinders.
  • The feeding conveyor adopts three-stage differential speed to automatically space and arrange tissues.
  • Equipped with four large-capacity bag magazines.
  • Bag opening, sleeving, supporting, pushing and bag sealing are fully automated,
  • The pusher has an air suction and corner folding function.
  • Defective bags from failed opening can be automatically and accurately rejected.
  • Reliable electrical components with famous international brands.

Technical Data

Model

TB-F60

Maximum Packing capacity

60 packs/min

Package dimension

200-400 (L) x 115-200 (W) x 85-100 (H) mm

Pre-made bag magazine

4 bag magazines

Power voltage

380V 50/60Hz 3phase

Power consumption

35 kW

Air pressure

0.5-0.8 Mpa

Air consumption

120 L/min

Overall dimensions

2840 (L) x 6060 (W) x 1800 (H) mm

Overall Weight

3500kg

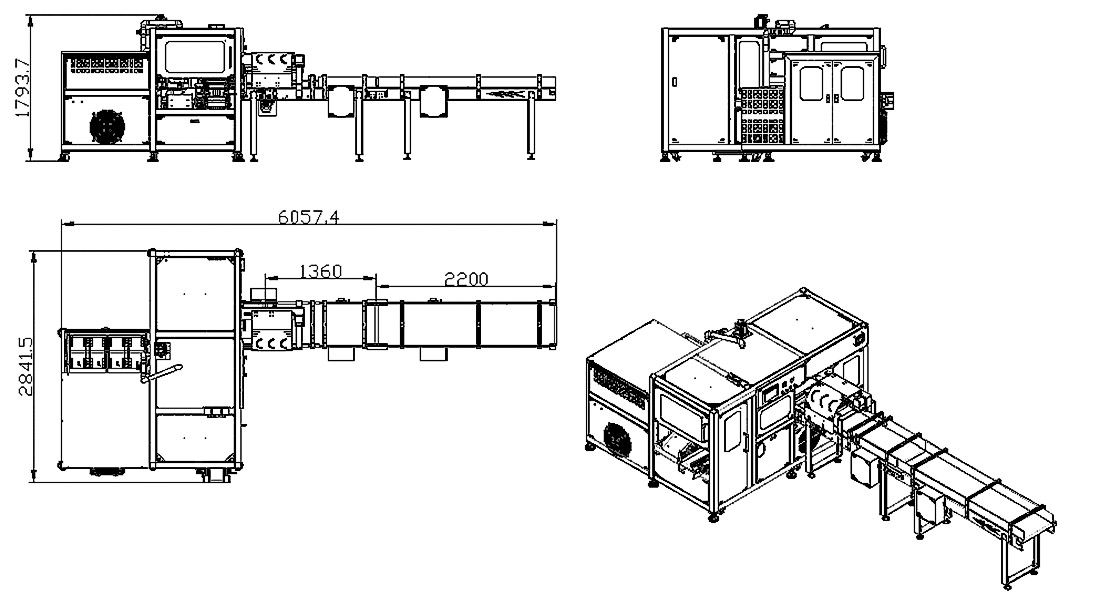

Layout

TBF60 layout
