BA-350P All Paper Blister Packing Machine

BA-350P Automatic Turntable All Paper Blister Packing Machine

Pack products with full paper blister packages consist of paper cardboard blister trays and backing paper cards. Form paper card blisters, fold flaps (optional), spray adhesive (optional), fill products(optional), and seal blisters to ready-made cards automatically.

Overview

BA-350P automatic all paper blister packaging machine is designed to do all paper blister packages which consist of a cardboard blister tray and a backing paper card. The blisters are made of paper cards, not plastic. They are environmentally friendly packages. The machine can fold paper cards and form paper blisters, fold flaps, spray adhesive (optional), fill products(optional), and seal blisters to ready-made cards automatically.

Application

  • Cosmetics and beauty products: mascara, lipstick, lip balm, nail polish, make-up, …
  • Household items: knife, flashlight, lighter, super glue, air freshener, bottle opener, scissors, toy, light bulb, candles, …
  • Office supplies: pen, sharpener, correction tape and fluid, USB flash drive, stapler, adhesive tape, printer cartridge, ballpoint pen, eraser, binder clips, …
  • Personal care products: razor, razor blade, cream, toothbrush, manicure sets, …
  • Batteries: button cell battery, AAA type battery, AA type battery, C type battery, …
  • Automobile parts: brake shoe, brake pad, spark plug, windshield wiper, …

Features

  • Blisters and packages are made of paper cardboard.
  • Driven by servo motors to ensure the machine runs accurately.
  • Reliable electrical equipment and pneumatic components ensure the stability.
  • Suitable for cardboard blister tray with flaps or without flaps.
  • Paper blisters are formed accurately.
  • Stainless steel machine shell.

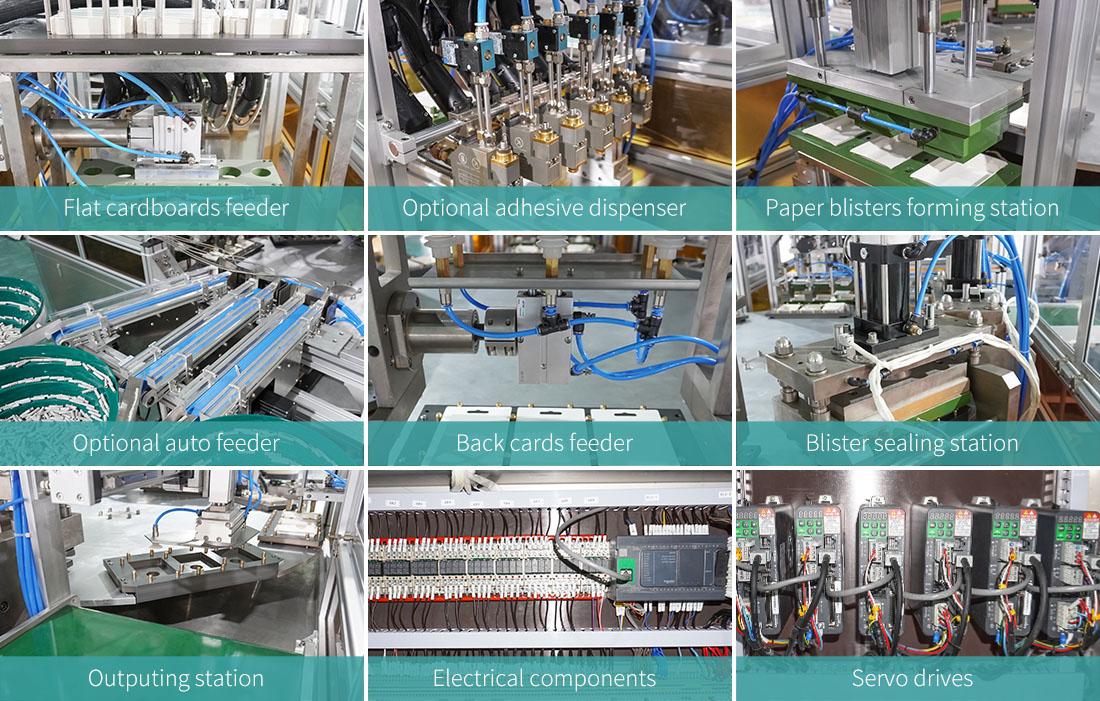

BA350P details

Technical Data

Model

BA-350P

Max. forming area

350 x 130mm

Max. sealing area

330 x 180mm

Packing capacity

6-15 cycles/min

Power voltage

380V 50/60Hz 3phase

Power consumption

6 kW

Air pressure

0.5-0.8 Mpa

Air consumption

≥0.5 CBM/min

Forming material

White cardboard, 200 – 400 gsm

Machine shell material

Stainless steel

Overall dimensions

L3080 x W2130 x H1895 mm

Overall Weight

2000kg

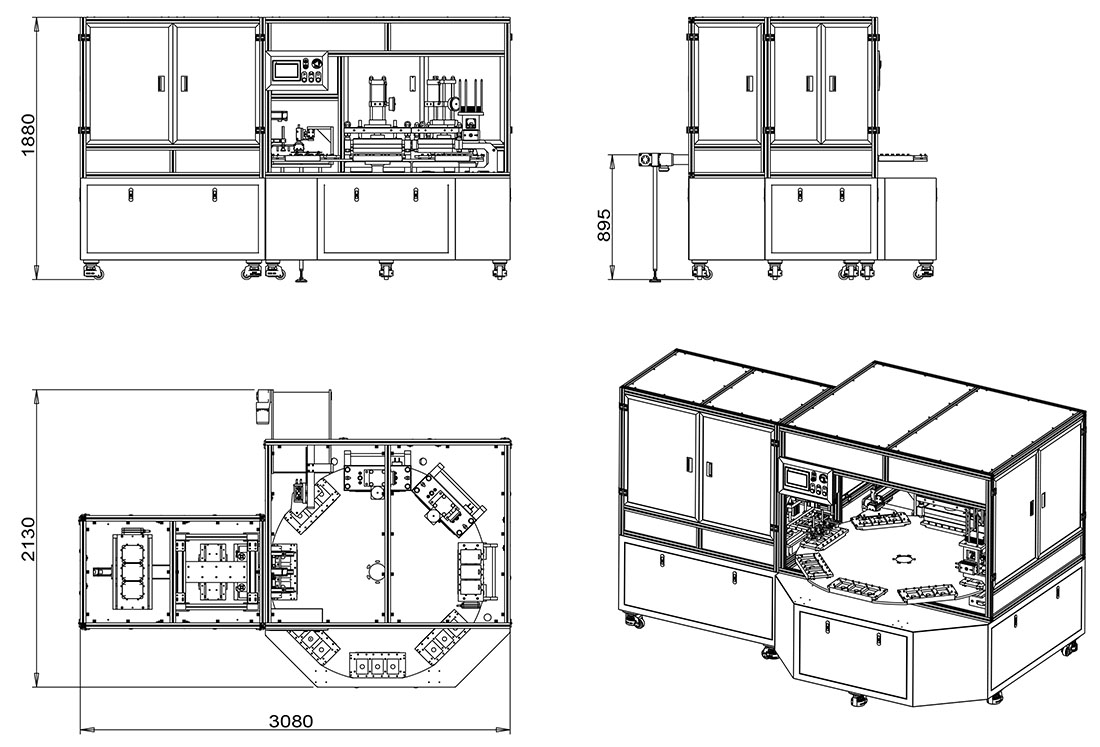

Layout

BA350P layout
