BP-260 / 350 Alu-PVC / Alu-Alu Automatic Blister Packing Machine
With quick changing molds. Form plastic or aluminum blisters, fill products, seal blisters to aluminum foil or dialyzing paper like tyvek paper. Mostly used in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Overview

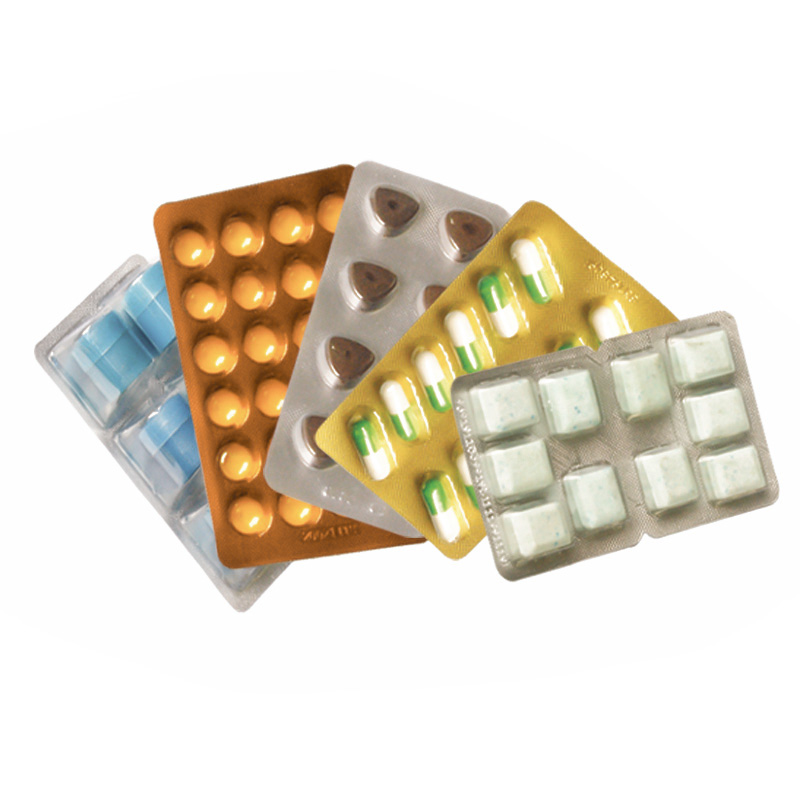

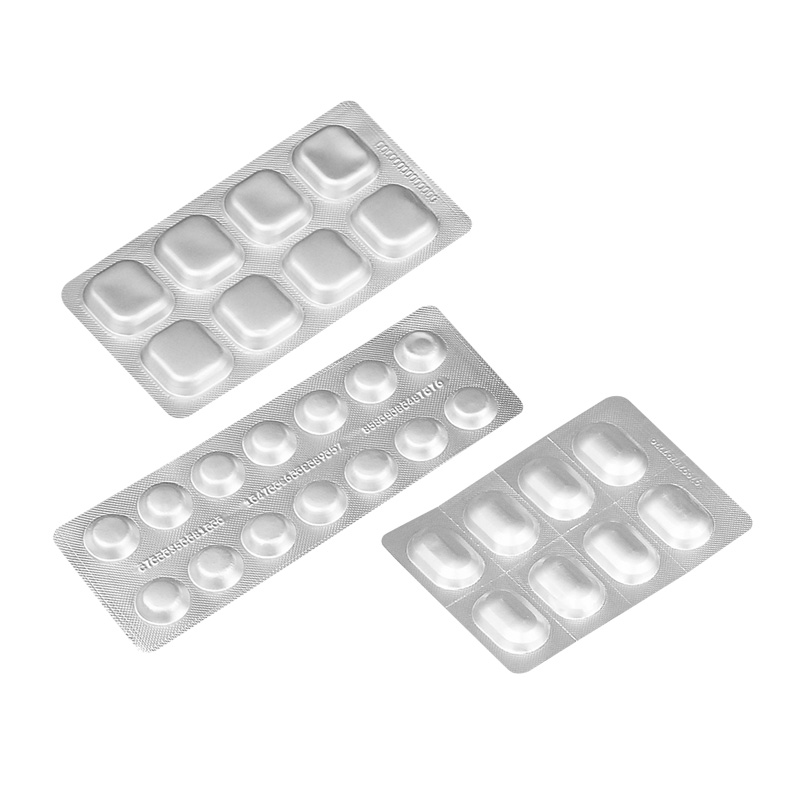

BP-260 / 350 series automatic blister packaging machines can form blisters, fill products, seal blisters to aluminum foil and dialyzing paper. This is ideal solution for capsule, tablet, honey pill, candy, liquid, paste, one injector as well as irregular shape Al-PVC, paper-PVC composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Features
Technical Data
|
Model |
BP-260A |
BP-260E |
BP-350A |
BP-350E |
|
Blister type |
Alu-PVC |
Alu-Alu |
Alu-PVC |
Alu-Alu |
|
Packing capacity |
15-55 cycles/min |
15-40 cycles/min |
15-50 cycles/min |
15-25 cycles/min |
|
Stroke range |
10-120mm |
10-120mm |
30-140mm |
30-140mm |
|
Max. forming area |
250 x 100 x 13mm |
250 x 100 x 13mm |
350 x 130 x 50mm |
350 x 130 x 12mm |
|
Power voltage |
380V 50/60Hz 3phase |
380V 50/60Hz 3phase |
380V 50/60Hz 3phase |
380V 50/60Hz 3phase |
|
Power consumption |
7 kW |
4 kW |
12 kW |
12 kW |
|
Air pressure |
0.5-0.8 Mpa |
0.5-0.8Mpa |
0.5-0.8Mpa |
0.5-0.8Mpa |
|
Air consumption |
≥0.36 CBM/min |
≥0.36 CBM/min |
≥0.5 CBM/min |
≥0.5 CBM/min |
|
Forming material |
PVC: 270 x 0.15-0.4 x 300 |
Alu Foil: 270 x 0.14-0.15 x 300 |
PVC: 350 x 0.15-0.4 x 400 |
Alu foil: 350 x 0.16-0.2 x 400 |
|
Machine shell material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
|
Overall dimensions |
L3550 x W900 x H1900mm |
L3550 x W900 x H1900mm |
4000 x 1000 x 2000mm |
4000 x 1000 x 2000mm |
|
Overall Weight |
2000kg |
2000kg |
2300kg |
2300kg |
