TC-80F Cube Box Tissue Cartoning Machine

TC-80F Automatic Cube Box Tissue Packaging Machine

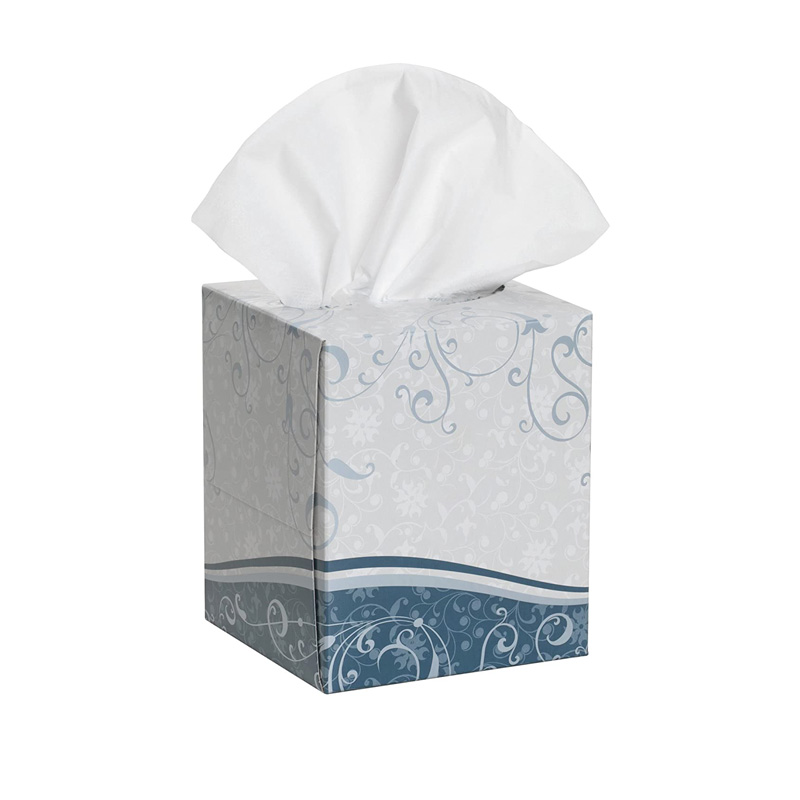

Package facial tissue and paper paper napkin into cube boxes. It includes a Nordson adhesive dispenser. The stable packaging speed is 80 boxes per minute.

Overview

TC-80F automatic tissue box packing machine is designed to feed and fold facial tissues and paper napkins into cube boxes and seal boxes. The steady packing speed is 80 boxes per minute. The machine includes a Nordson adhesive dispenser and controlled by reliable electrical components. It is a flexible machine which has wide packing range.

Features

  • Erect boxes, feed tissues, fold tissues, put tissue into boxes, mark batch number, dispense hot melt adhesive, seal boxes and output packaged boxes automatically.
  • Adopts servo motors to feed tissue paper and put tissue into boxes.
  • Adopts high-capacity and faster cartons feeder.
  • Only feed the cartons when the tissues are in position.
  • Adopts Nordson hot melt adhesive dispenser.
  • Reliable electrical components with famous international brands.
  • Wide packing range, adjust packing size quickly.
  • The machine stops when it is overload.
  • Equip safety guide cover.
TC100 details

Technical Data

Model

TC-80F

Packing capacity

30-80 boxes/min

Carton board grammage

300-400 gsm

Carton dimension

115 (L) x 115 (W) x 130 (H) mm

Power voltage

380V 50/60Hz 3phase

Power consumption

7 kW

Air pressure

0.5-0.8 Mpa

Air consumption

120-160 L/min

Overall dimensions

4310 (L) x 1460 (W) x 1800 (H) mm

Overall Weight

2500kg

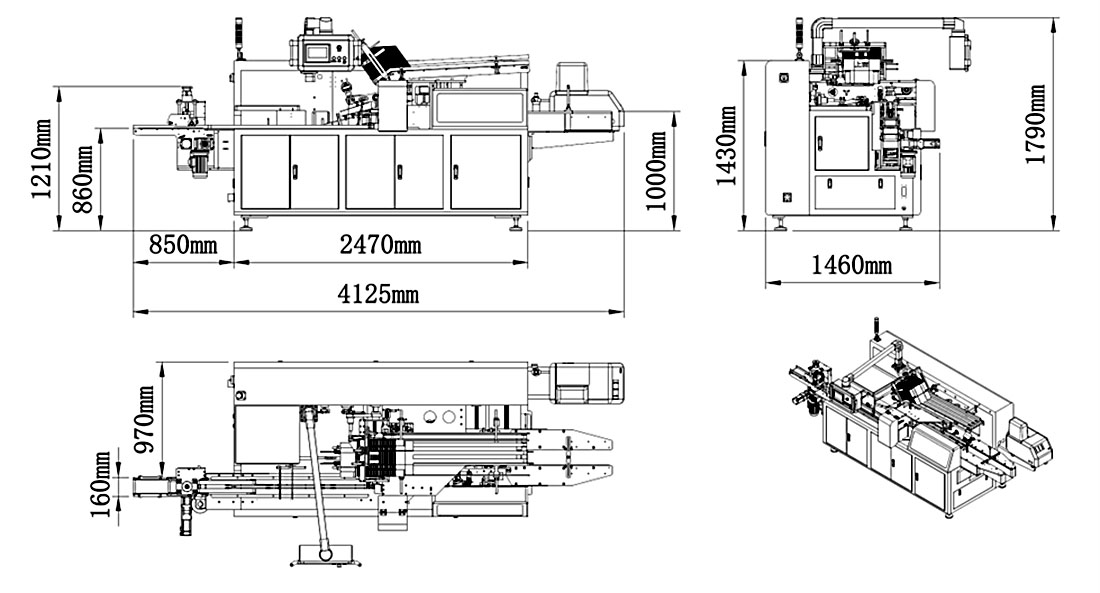

Layout

TC80F layout
