BA-600 Automatic Linear Blister Card Packing Machine
Thermoform blisters, fill (optional) products, seal blisters to ready-made cards automatically. It is flexible and has high packing capacity for large runs. Perfect blister packing solution for cosmetics, stationary, battery, auto part, hardware, etc.
Overview
BA-600 automatic linear blister card packing machine can form blisters, fill (optional), seal blisters to ready-made cards automatically. It is flexible and has high packing capacity for large runs.
Blisters are the ideal form of packaging for consumer and industrial products. The perfect combination of complete product visibility on one side and printed information on the other side of the packaging helps consumers and users find what they are looking for quickly and easily.
Application
Features
Technical Data
|
Model |
BA-600 |
|
Max. size of card |
510 x 250mm |
|
Max. forming area |
480 x 220mm |
|
Max. forming depth |
40mm |
|
Packing capacity |
12-20 cycles/min |
|
Power voltage |
380V 50/60Hz 3phase |
|
Power consumption |
13 kW |
|
Air pressure |
0.5-0.8 Mpa |
|
Air consumption |
≥0.5 CBM/min |
|
Forming material |
PVC, PET, PS, thickness 0.15-0.5mm |
|
Forming material roll size |
width 500mm x diameter 450mm |
|
Machine shell material |
Stainless steel |
|
Overall dimensions |
L6100 x W1070 x H1850mm |
|
Overall Weight |
2600kg |

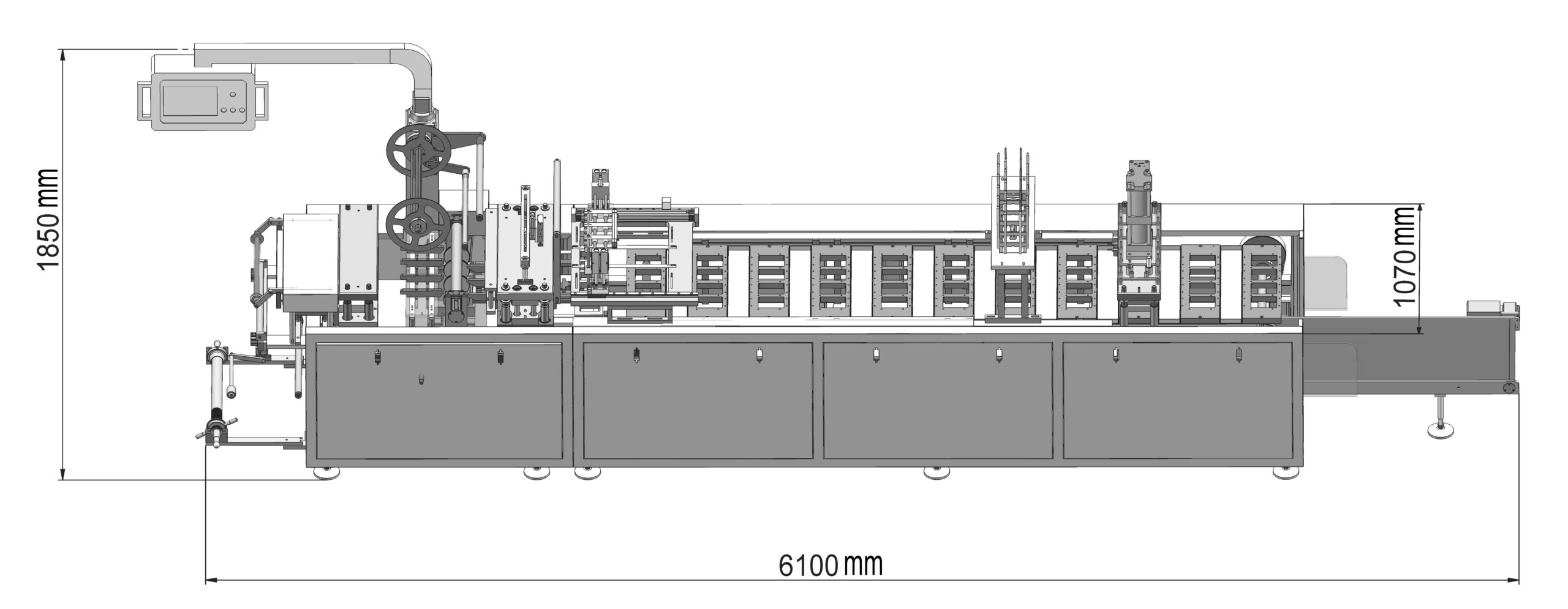

Layout
Video
Watch the video to learn more about the machine
