BA-600H Linear HF Sealing Blister Packing Machine

BA-600H Automatic Linear Blister Packing Machine with High Frequency Sealing

Linear blister packing machine adopts high frequency sealing which can make a better and stronger sealing especially for double blisters. Thermoform blisters, fill (optional) products, place cards or blisters, seal blisters to ready-made cards or blisters automatically.

Overview

BA-600H automatic blister packaging machine with high frequency sealing system can form blisters, fill (optional) products, seal blisters to ready-made cards or blisters automatically. This machine can seal double blister perfectly.

Application

  • Cosmetics and beauty products: mascara, lipstick, lip balm, nail polish, make-up, …
  • Household items: knife, flashlight, lighter, super glue, air freshener, bottle opener, scissors, toy, light bulb, candles, …
  • Office supplies: pen, sharpener, correction tape and fluid, USB flash drive, stapler, adhesive tape, printer cartridge, ballpoint pen, eraser, binder clips, …
  • Personal care products: razor, razor blade, cream, toothbrush, manicure sets, …
  • Batteries: button cell battery, AAA type battery, AA type battery, C type battery, …
  • Automobile parts: brake shoe, brake pad, spark plug, windshield wiper, …

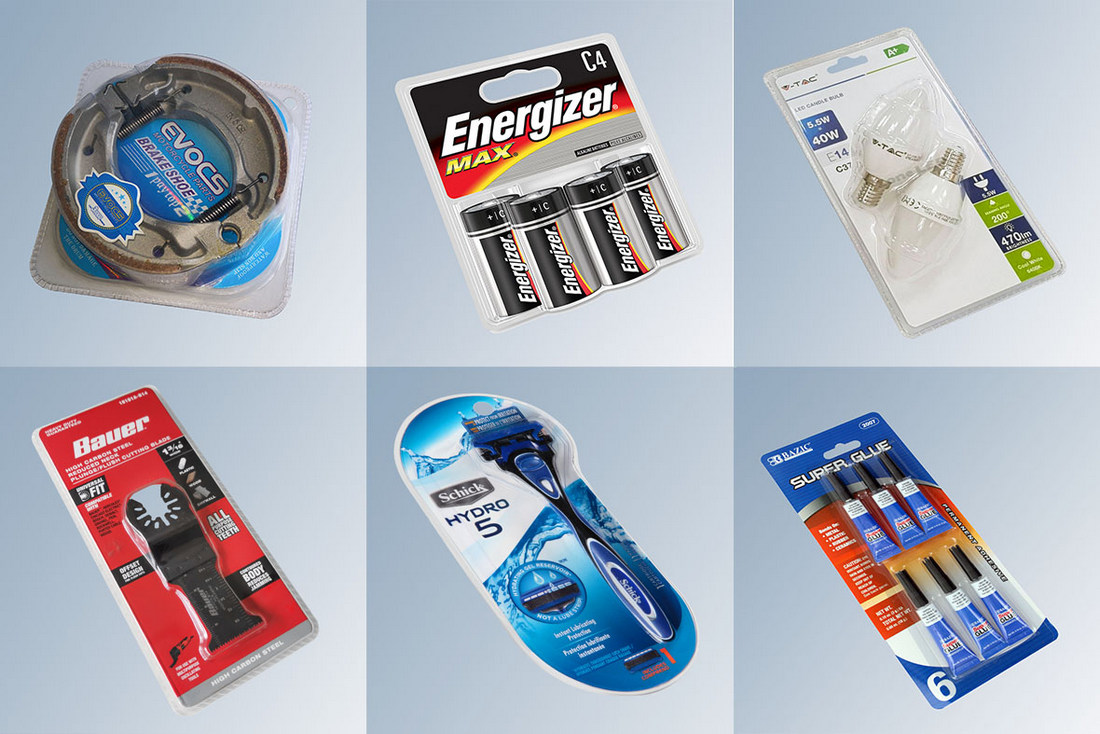

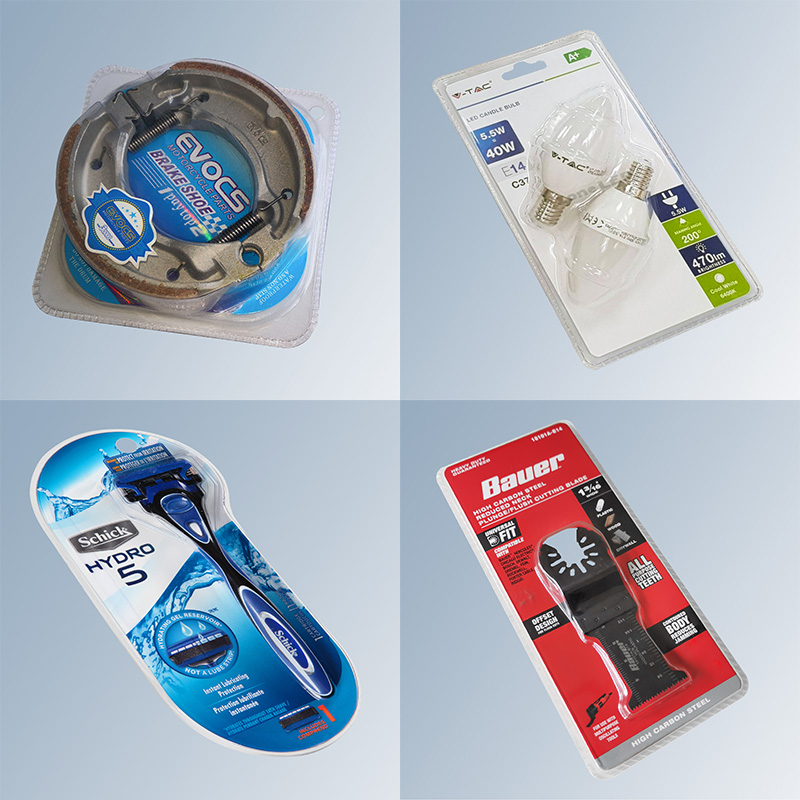

BA600H samples

Features

  • Adopts high frequency sealing to make a stronger sealed flange.
  • Driven by servo motors to ensure the machine runs accurately.
  • Reliable electrical and pneumatic components ensure the stability.
  • Large forming, sealing and feeding area.
  • Most of the mechanical parts have been well surface treated
  • Stainless steel machine shell.

Technical Data

Model

BA-600H

Max. size of card

510 x 250mm

Max. forming area

480 x 220mm

Max. forming depth

40mm

Packing capacity

5-15 cycles/min

Power voltage

380V 50/60Hz 3phase

Power consumption

21 kW

Air pressure

0.5-0.8 Mpa

Air consumption

≥0.5 CBM/min

Forming material

PVC, PET, PS, thickness 0.15-0.5mm

Forming material roll size

width 500mm x diameter 450mm

Machine shell material

Stainless steel

Overall dimensions

L6100 x W2420 x H1850mm

Overall Weight

3600kg

Layout

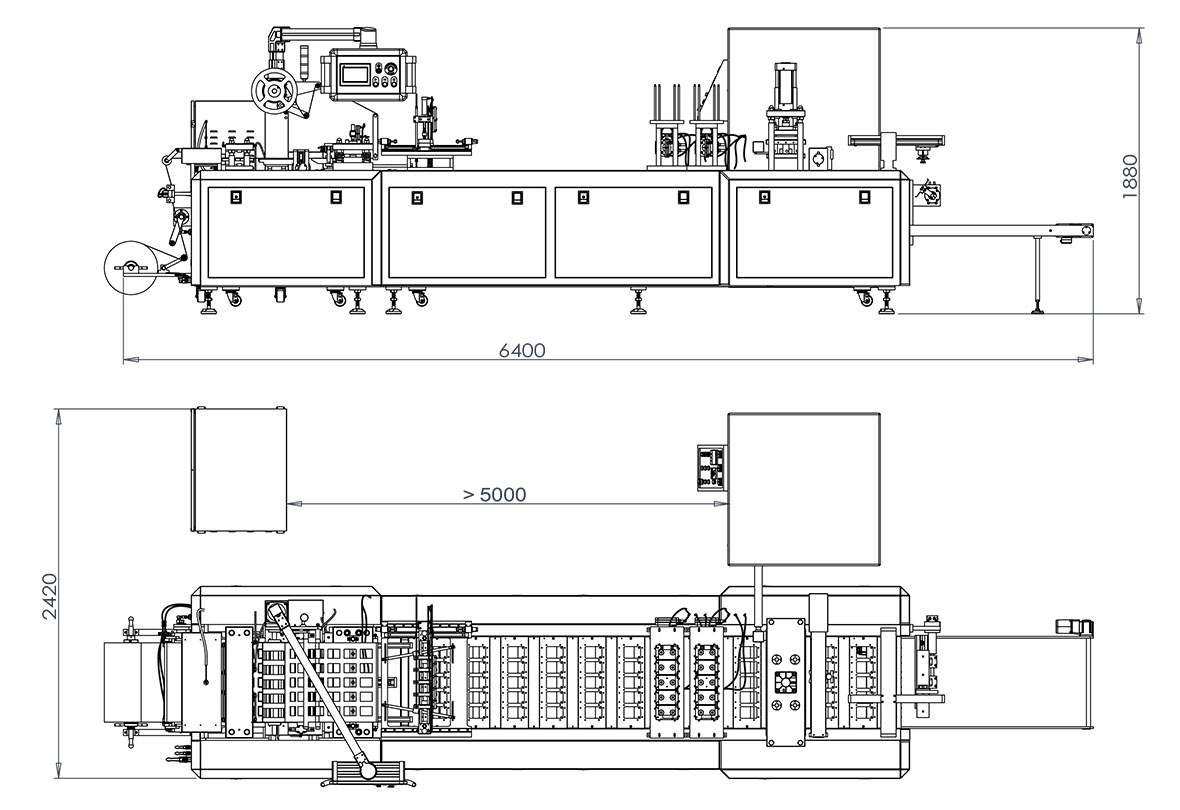

BA600H layout
