Name: TC-80Y Tissue Canister Packing Machine - WIMACH
Brand: WIMACH
SKU: TC-80Y
Price: 1 USD
Availability: InStock

TC-80Y Automatic Tissue Canister Packing Machine

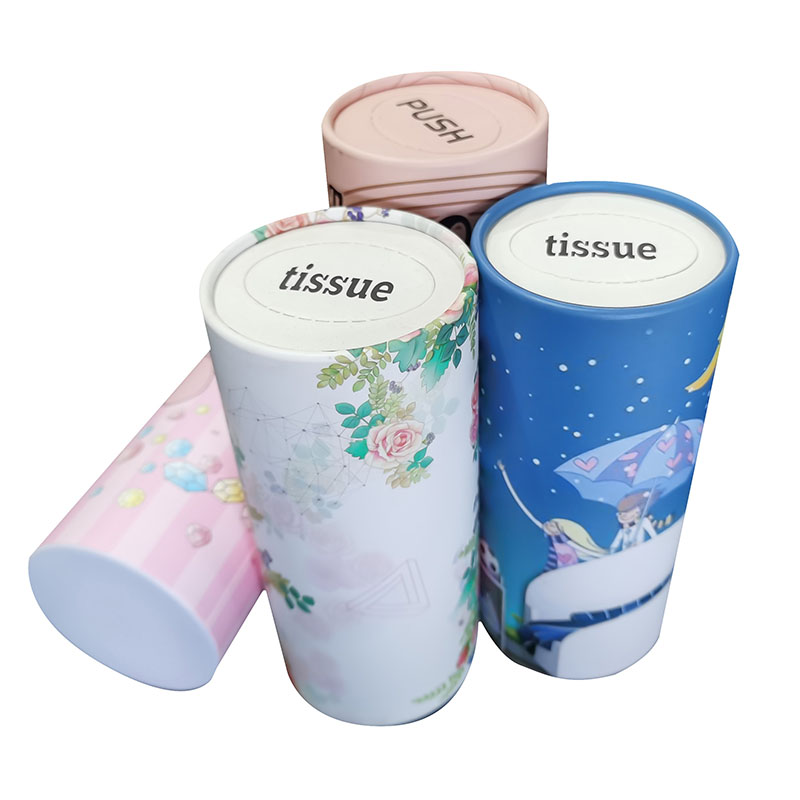

Package facial tissue and paper napkin into paper canisters and close the lids. The stable packaging speed is 60 canisters per minute.

Overview

TC-80Y automatic tissue canister packing machine is designed to feed and fold facial tissues and paper napkins into paper canisters and close lids. The steady packing speed is 60 canisters per minute. The machine includes a lids feeding system and a paper canister feeding conveyor.

Features

Feed tissues, feed canisters and lids, fold tissues, put tissues into canisters, close lids automatically.
Adopts servo motors to feed tissue paper and put tissue into canisters.
Adopts high-capacity and faster cartons feeder.
Only feed the canisters when the tissues are in position.
Reliable electrical components with famous international brands.
Wide packing range, adjust packing size quickly.
Optional safety cover on the machine.

Technical Data

Model	TC-80Y
Packing capacity	30-80 boxes/min
Canister dimension	100-220 (L) x 50-80 (D) mm
Power voltage	380V 50/60Hz 3phase
Power consumption	3.5 kW
Air pressure	0.5-0.8 Mpa
Air consumption	100-120 L/min
Overall dimensions	6030 (L) x 2310 (W) x 2200 (H) mm
Overall Weight	1200kg
